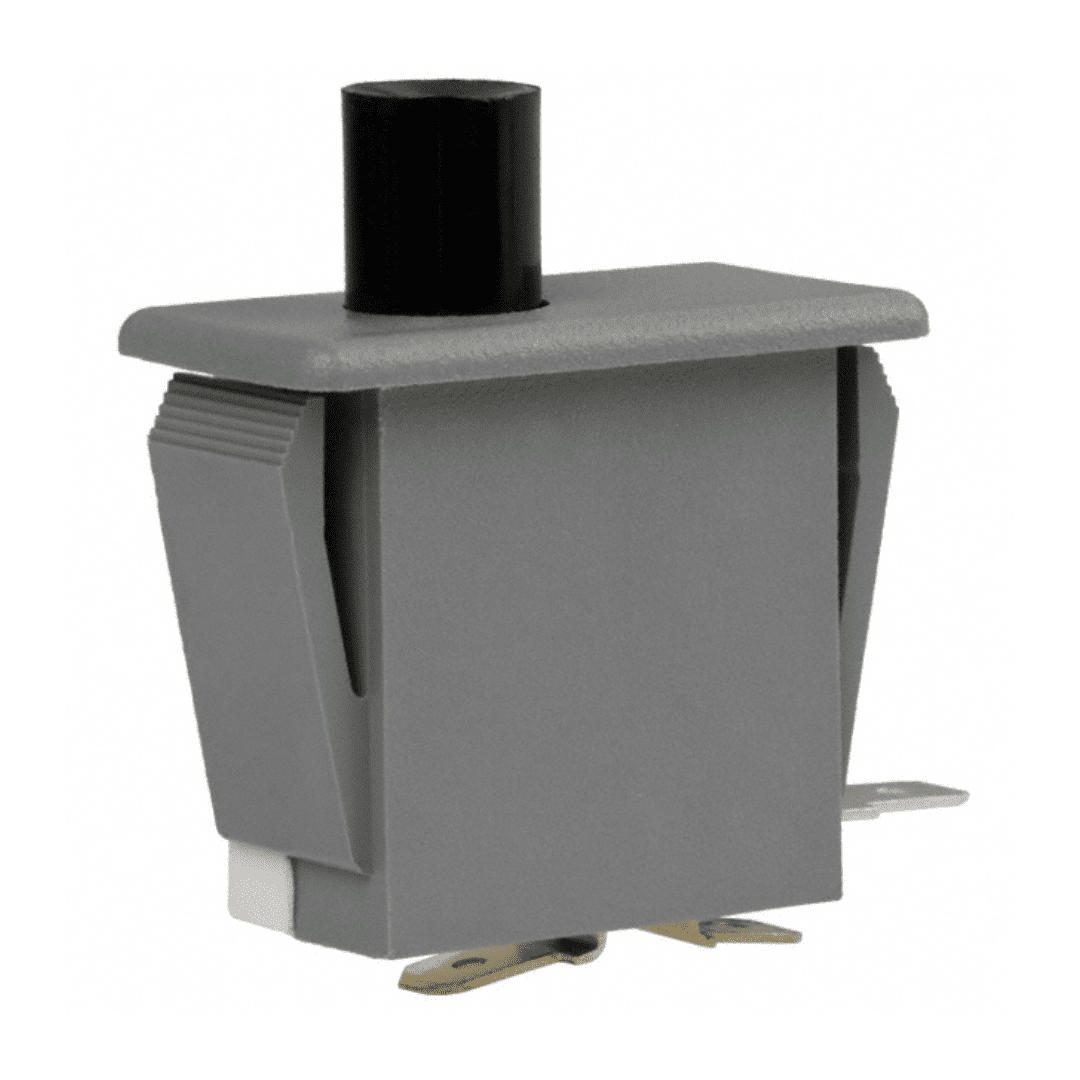

1DM18 Honeywell Micro Switch

Available on order
For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No. 1DM18
Description snap-in panel mount basic switch
Terminations quick connect, 4,78 mm x 0,51 mm [0.188 in x 0.020 in]
Amp rating -37 °C to 82 °C [-35 °F to 180 °F]
Operating force 4,17 N [15 oz] max
Mechanical life 1 million operations, 95 % survival
Circuitry SPNO, SPDT, DPDT
Voltage 125 Vac, 250 Vac, 277 Vac
Approvals UL, CSA

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell SZL-WL-K-A01H Heavy Duty Limit Switches

Description

1DM18 Honeywell Micro Switch

MICRO SWITCH™ DM/DP basic switches are designed for a variety of applications, and known for their compact,
lightweight design and accurate repeatability. The DM/DP Series is a special application precision switch that can be
used in a variety of applications, including appliance door lights and door interlocks, as well as service panels.
The DM/DP Series snap-action switches have momentary, push-pull, and pull-to-cheat configurations. The quickconnect terminals and snap-in, panel-mount housings provide easy installation. In addition to the standard quickconnect terminals (4,78 mm x 0,51 mm [0.188 in x 0.020 in]), larger 6,35 mm x 0,81 mm [0.25 in x 0.032 in] quickconnect terminals can be provided.
