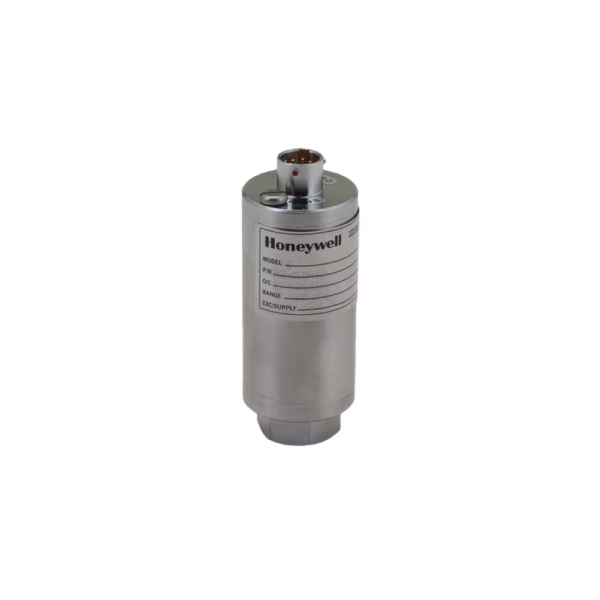

060-1108-13ZG Honeywell Pressure Transducer

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	060-1108-13ZG
Pressure Range	50, 000 PSI
Accuracy	±0.25 %FS
Linearity	±0.15 %FS
Temperature (Operating)	-100 °F to 325 °F up to 1000 psi -100°F to 250°F 1500psi and above
Temperature (Compensated)	15 °C to 71 °C [60 °F to 160 °F]
Temperature Effect (Zero)	0.005 %FS/°F

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

060-1108-13ZG Honeywell Pressure Transducer

DESCRIPTION
Model Z pressure transducers are all-welded stainless steel sensors built for rugged industrial applications that require high accuracy and measurement stability. Pressure ranges span from 0.5 psi to 60000 psi. They utilize complete four-arm 350 ohm strain gage bridges. The Model Z is available with a variety of options for extended temperature operation, electrical terminations and high-level outputs including 5 Vdc or 10 Vdc and 4 mA to 20 mA. Most high-level output models have internal shunt calibration circuits as a standard feature to allow easy
set-up of the sensor to the data system. An optional internal signature calibration chip provides calibration information for automatic set up with the Model SC four-or-twelve channel digital indicator.
The gage Model Z is a strain gage based transducer. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment. The absolute Model Z has an all-welded vacuum reference chamber assuring long-term stability.
