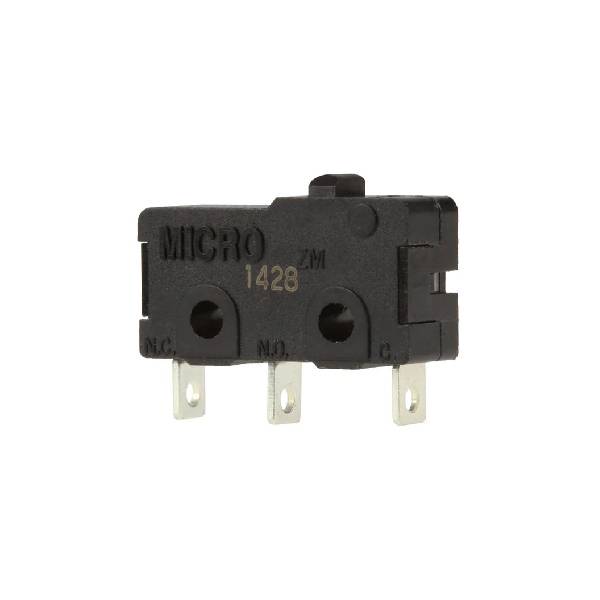

ZM50E10A01 Honeywell Micro Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	ZM50E10A01
Circuitry/ Contact Material	SPDT Silver Alloy
Electrical Rating	5 A
Termination	Solder
Operate Force max. g [oz]	146 [5.15]
Release Force min. g	35 [1.23]
Sealing	IP40
Agency certification	UL, cUL, CQC, RoHS and Reach compliant
Operating temperature	-40 °C to 125 °C
Mechanical endurance	5,000,000 min. @ 400 cycles/minute max
Switch resistance	100 mΩ max
Dielectric strength	1500 V RMS for one minute

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

ZM50E10A01 Honeywell Micro Switch are subminiature snap action switches from the Honeywell MICRO SWITCH family of Z Series subminiature basic switches. Although small in size, the ZM and ZM1 Series are rated for controlling electrical loads ranging from logic level (computer based circuits) to power duty switching (up to 16.1 A and 250 Vac). The package size of the subminiature switch is ideal for applications where space on the equipment is at a premium. The overall length of the ZM and ZM1 Series are less than 20 mm [0.78 in]. As with all snap-action switches, the audible click when actuated promotes ease of installation and set-up of the switches. A wide variety of integral stainless steel levers are available and when combined with the subminiature package size, may adapt the switch to a wide variety of applications. The ZM Series is agency certified to UL, cUL and CQC for worldwide use, while the ZM1 Series is agency certified to UL, cUL, ENEC, CE, UKCA and CQC for worldwide use.
