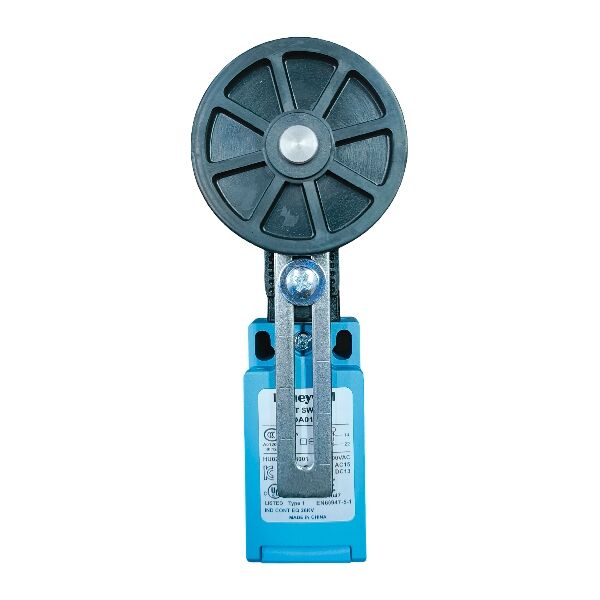

ZLDA01A2Y Honeywell Limit Switch

553.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model Number ZLDA01A2Y
Enclosure Type EN50047(Plastic)
Conduit Sizes 1/2 NPT
Contact Block Type 1NO/1NC
Snap Action
Actuator Style Adjustable, Side Rotary Lever
Operating Temperature -25~ +80°C
Humidity <95%RH
Shock/Vibration 10 g / 50 g
Operating Speed 0.05mm-2m/s
Operating Frequency 120 ops/min
Contact Resistance <25mΩ
Degree of Protection IP65
Electrical Rating AC15 A300
DC13 Q300
Dielectric Strength 2500V
Mechanical Life 10000000
Electrical Life 5×100000

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

ZLDA01A2Y Honeywell Limit Switch  , ZLS series limit switches are specifically designed for worldwide applications and is supported by Honeywell global resources for sales and after sales service. Honeywell ZLDA01A2Y Limit Switch, ZLS series limit switch is design to the latest IEC standard and include a wide range of EN50041 and EN50047 type switches. Miniature EN50047 limit switches are available in metal and double insulated enclosures and a metal enclosed 3-cable entry version (EN50047 mounting compatible) is also offered. Standard ZLS switch circuit variations include 2 and 3-circuit versions with forced disconnect mechanism. ZLS includes features to make quick installation easier and safer. Customers will benefit from Honeywell’s vast experience in serving world industries over many years. Most ZLS versions are interchangeable with almost all other makes of EN50041/47 switches.

TYPICAL APPLICATIONS

  1. Machine tools: metal fabrication equipment, presses, transfer lines and special machinery
  2. Material handling equipment: conveyors, elevators, cranes and hoists
  3. Packaging machinery and process equipment
  4. Textile machinery
  5. Construction machinery and equipment, vehicles and lift trucks

FEATURES

  1. Designed to the new IEC standard for world-wide applications
  2. Positive opening of normal closed contact meets IEC947- 5-1-3 safety standard.
  3. UL, CSA, and CE
  4. Sealing up to IP/65/ IP 67
  5. International conduit sizes
  6. Design for ease of installation
  7. Eleven basic switch versions, Wide choice of actuators

Additional information

Weight 150 kg
