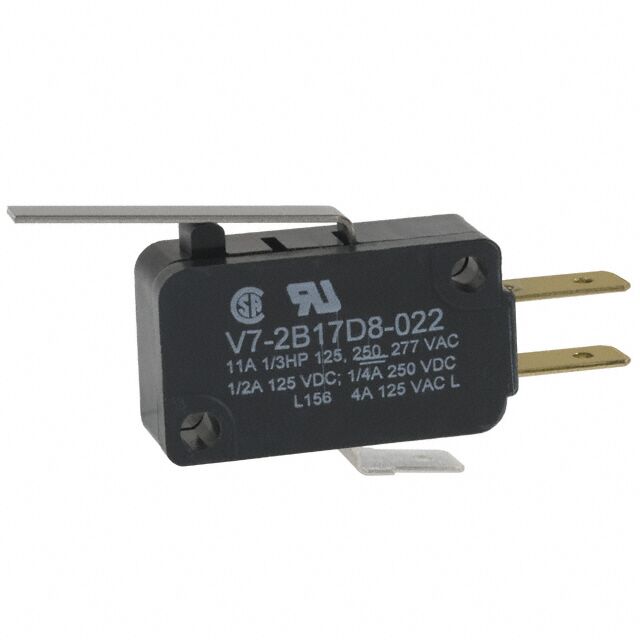

V7-2B17D8-022 Honeywell Micro Switch

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	V7-2B17D8-022
Type	V7 Series Miniature Micro Switch
Lever Type	Roller 20,6 mm [0.81 in]
Operating Force	150 g max.
Electrical Rating	15 A @ 125 Vac
Operating Temperature	-40 °C to 85 °C
Circuitry	SPDT
Mounting Construction	85 °C 2,9 mm [0.11 in] mtg. holes
Terminal Type	0.250 x 0.032 quick connect spread

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

V7-2B17D8-022 Honeywell Micro Switch , V7 miniature switches are designed for long term-reliability in a rugged switch packaged with a thermoplastic housing. Honeywell V7-2B17D8-022 Micro Switch may be installed in a wide range of applications from simple or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies. The V7 switch is available as a pin plunger style or with optional integral or auxiliary levers to actuate the switch and offer versatility in the application. The switch requires as little as 0,15 Newtons [approximately ½ ounce] to operate for extremely sensitive applications or an operating force of almost 4 Newtons [14 ounces] where higher forces are required. The V7 switch can reliably control logic level electrical loads from less than 0.1 A to power duty switching up to 25 A. Agency certifications for the MICRO SWITCH™ V7 switches are provided through CSA, ENEC, and UL for global use around the world.
