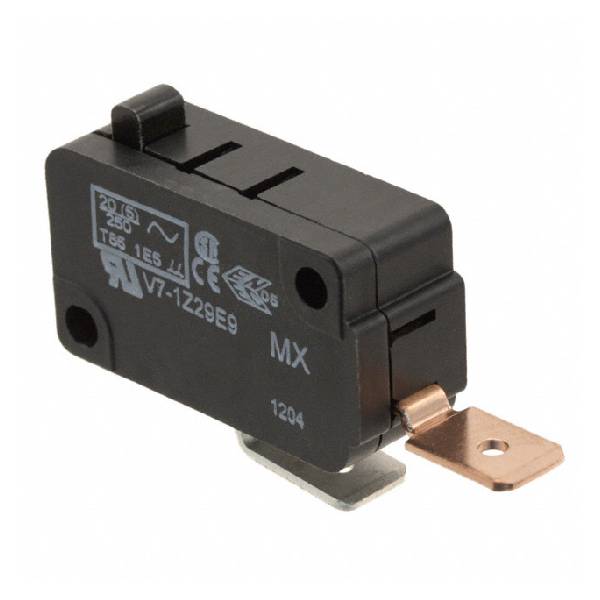

V7-1Z29E9 Honeywell Micro Switch

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. V7-1Z29E9
Operating Force 0,25 N to 3,9 N [15 g to 397 g]
Electrical Rating 25 A @
125 Vac 20 A
Circuitry Code SPNO
Mounting/ Construction 85 °C
2,9 mm [0.11 in]
mtg. holes
Termination Style 0.250 x 0.032
quick connect
spread
Actuators pin plunger, integral lever options
Agency certification CSA, ENEC, UL; RoHS compliant
Operating temperature -40°C to 85°C [-40°F to 185°F], options for 175°C [347°F]
Mechanical life up to 10 million cycles
Housing material glass-filled PCT high-performance polyester

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell V7-1C17E9-201 Micro Switch

Description

V7-1Z29E9 Honeywell  Micro Switch is design for long-term reliability, up to 10 million cycles which incorporate a snap-spring mechanism with more than 60 years of proven service and a high strength thermoplastic housing for durability. V7 Series premium miniature basic switch is design with a standard temperature rating of 85 °C (185 °F) or options for a temperature rating up to 175 °C (347 °F). The switches are available with a single pole double throw (SPDT) or single pole single throw (SPST) contact design. Actuation for the switches includes a wide range of options, which include the pin plunger or an assortment of integral levers with two different lever locations.

Design variations of the internal switch mechanism and contact materials permit these switches to reliably control logic level electrical loads from less than 0.1 A to power duty switching up to 25 A in addition different styles of electrical terminals solve most installation parameters furthermore they have been certified by CSA, CE, UL for global applications as well as being RoHS compliant. These switches are available through Honeywell’s worldwide network.



DIFFERENTIATION

  1.  Wide assortment of actuators for the V7 switch, electrical terminations and operating characteristics to solve numerous switch applications
  2. V7 Series common package size offers different internal switch designs which can reliably control a wide range of electrical loads from logic level to power duty switching (up to 25 A)
  3. Honeywell worldwide network for product availability



VALUE TO CUSTOMERS

  1. Wide variety of electrical ratings; 0.1 A up to 25 A
  2.  Available with pin plungers or different styles of integral levers to integrate into equipment requirements
  3. Agency certified for global applications



Honeywell V7-1Z29E9 Micro Switch FEATURES

  1. High strength thermoplastic housing, glass-filled PCT high-performance polyester
  2. Single pole double throw (SPDT): 3 terminals; single pole single throw normally closed (SPST-NC) 2 terminals; or single pole single throw normally open (SPST-NO) 2 terminals
  3. Wide range of electrical ratings ranging logic level (less than 0.1 A) till  25 A power duty rated
  4. Pin plunger actuated or wide assortment of factory assembled integral lever options
  5. Operate force range as low as 15 g (0.5 oz) up to 400 g (14 oz)
  6. Rated for up to 10 million cycles
  7. Temperature range from -40°C to 85°C [-40°F to 185°F] or options for -40°C to 175°C [-40°F to 347°F]
  8. Common V Series diagonal mounting pattern; 22,2 mm L x 10,3 mm H [0.88 L x 0.41 in H]
  9. CSA, ENEC, and UL certifications; RoHS compliant



POTENTIAL APPLICATIONS

  1.  Vending machines
  2. Household appliances
  3. Pressure switch assemblies
  4. Refrigeration and air-conditioning equipment
