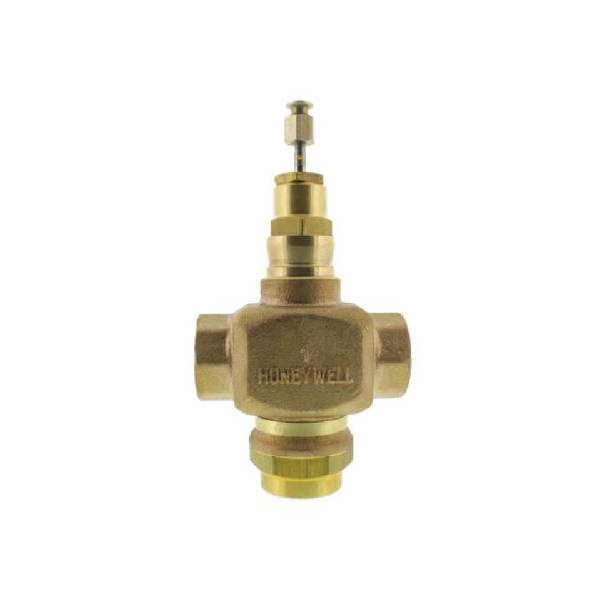

V5013N1063/U Honeywell Valve

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. V5013N1063/U
Pipe Connections Internally-threaded NPT connections
Seat Stainless steel, replaceable
ANSI Body Class  150 psi.
Approximate
Leakage Rate
0.05 percent Cv.
Packing Spring-loaded, carbon fiber reinforced
PTFE V-rings
Stem Stainless steel.
Stroke 3/4 in. (20 mm).
Rangeability 50:1 per VDI/VDE 2173.
Pattern 2-way, straight-through.
Body Material Red brass.

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

V5013N1063/U Honeywell Valve

• Red brass body with NPT-threaded end connections.
• Stainless steel stem and brass plug.
• Low seat leakage rate (≤0.05 percent Cv).
• Spring-loaded, self-adjusting packing.
• 50:1 rangeability per VDI/VDE 2173.
• Constant total flow throughout full stem travel.
• Accurate positioning to ensure state of the art temperature
control.
• Sizes range from 1/2 in. to 2 in.
• Suitable for pneumatic or electric/electronic actuation.
• Repack and rebuild kits available for field servicing.
