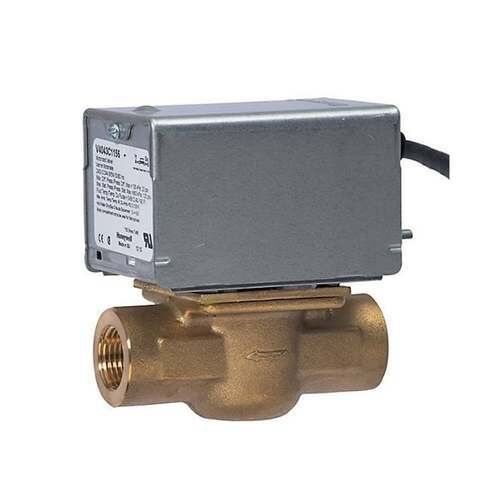

V4043C1354B Honeywell FCU Valve

Available on order

4,546.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. V4043C1354B
Static Pressure Rating PN16 (232psi)
Valve Action Normally Closed
Timing Open or close in 15 seconds maximum
Temperature ratings Maximum Fluid Temperature: 116°C
Minimum Fluid Temperature: 5°C
Ambient Temperature:50°C
Approvals Underwriters Laboratories Inc. Lis
Ways 2 ways
Voltage (Vac) 220
Frequency (Hz) 50
Size 1/2″
Pipe Connection (Internal Thread) Flare
Flow Capacity Cv 3.5
Max.Close-Off Pressure (psi) 20

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

V4043C1354B Honeywell FCU Valve

FEATURES
• V4043 provides 2-position, straight-through control of water.
• Compact construction for easy installation.
• Manual opener for valve operation on power failure.
Valve returns to automatic position when power is restored.
• Motor can be replaced by removing one screw, without disturbing the valve body or draining the system.
• Complete power-head may be removed or replaced without breaking the line connections or draining system.
• All models can be installed without disassembling the valve.

APPLICATION

Honeywell V4043C1354B FCU Valve consist of an actuator motor and valve
assembly for controlling the flow of hot or cold water.
