Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model no. | V15T16-EZ300 |
| Circuitry | SPDT, SPNO, SPNC |
| Operating force | 0,15 N to 3,92 N [15g to 400 g] |
| Termination | quick connect; 6,35 mm x 0,80 mm [0.250 in x 0.032 in] quick connect 4,80 mm x 0,80 mm [ 0.187 in x 0.032 in] quick connect 4,80 mm x 0,50 mm [0.187 in x 0.020 in] push-in terminals; RAST-5 250#; RAST-7 250#; short solder; slot-hole solder; solder; right side PCB; left side PCB; straight PCB; screw; oblique screw |
| Actuators | pin plunger, integral lever options |
| Agency certification | ENEC, CQC, UL, cUL |
| Operating temperature (manufacturer specified) |
code S: -25 °C to 85 °C [-13 °F to 185 °F] code T: -25 °C to 125 °C [-13 °F to 257 °F] code H: -25 °C to 150 °C [-13 °F to 302 °F] |
| Humidity | Validated to 240 hours at 40°C [40°F], 95 %RH |
| Mechanical life (cycles) | 1 million cycles (except for 200 g versions of V15S05 and V15T10 which are 500,000 cycles) |
| Contact material | silver (≤5 A), silver cadmium oxide (>5 A); gold-plated and cadmium-free options available |
| Housing material | PBT thermoplastic polyester (standard) PET thermoplastic polyester (V15H high temperature, 150 °C [302 °F]) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

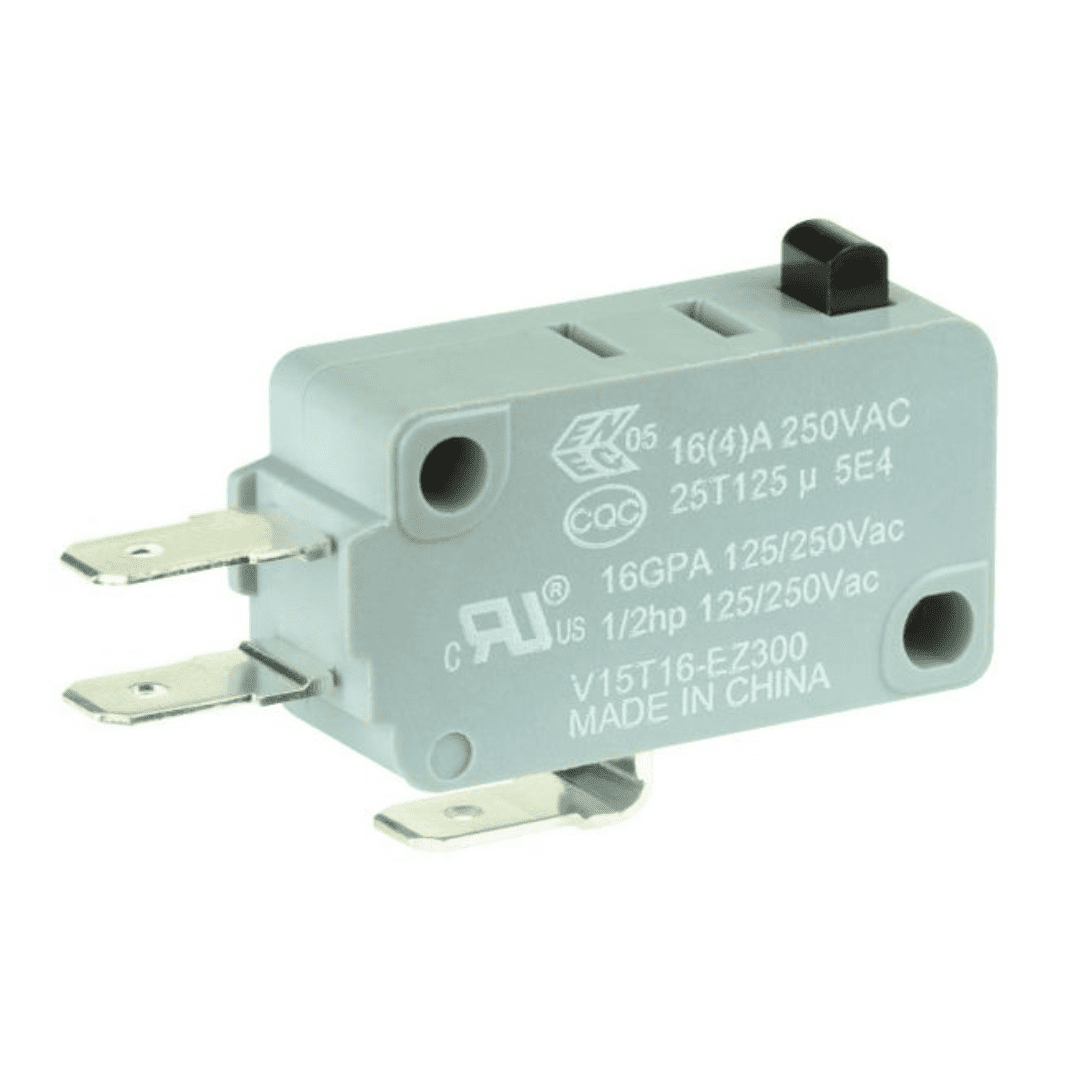

V15T16-EZ300 Honeywell Micro Switch
The Honeywell MICRO SWITCH V-Basic Standard Switch, V15 Series is an electromechanical switch designed to provide outstanding value in a reliable global package. This switch is often ideal for “low-cost-of-failure” applications, where the cost is minimal to replace or service any failure related to the switch. With a wide variety of operating forces, and amperage ratings, the V15 is designed for numerous types of applications.
