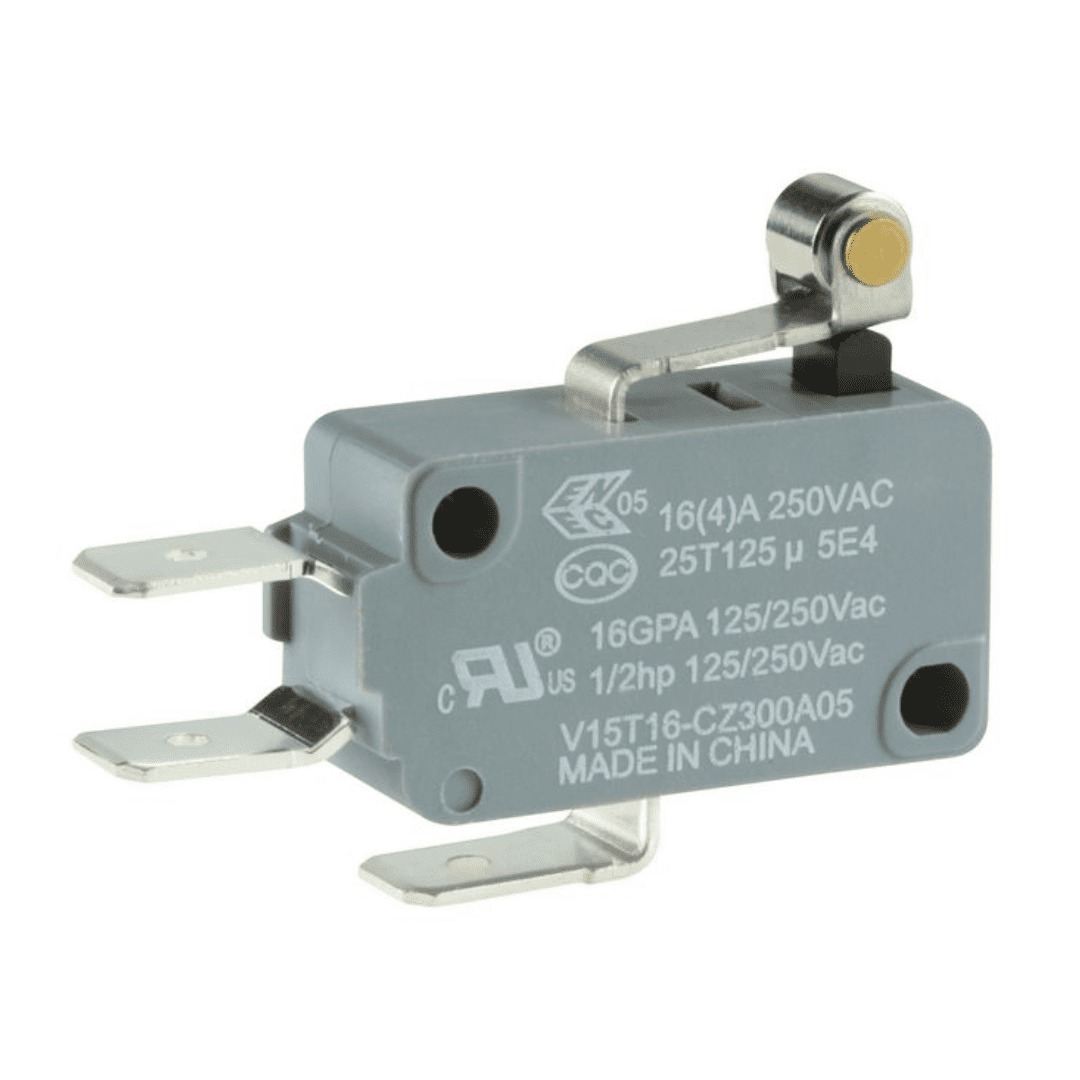

V15T16-CZ300A05 Honeywell Micro Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	V15T16-CZ300A05
Circuitry	SPST-NC
Operating force	200 gf; 1,96 N
Termination	quick connect; 6,35 mm x 0,80 mm [0.250 in x 0.032 in] quick connect 4,80 mm x 0,80 mm [ 0.187 in x 0.032 in] quick connect 4,80 mm x 0,50 mm [0.187 in x 0.020 in] push-in terminals; RAST-5 250#; RAST-7 250#; short solder; slot-hole solder; solder; right side PCB; left side PCB; straight PCB; screw; oblique screw
Actuators	pin plunger, integral lever options
Agency certification	ENEC, CQC, UL, cUL
Operating temperature (manufacturer specified)	code S: -25 °C to 85 °C [-13 °F to 185 °F] code T: -25 °C to 125 °C [-13 °F to 257 °F] code H: -25 °C to 150 °C [-13 °F to 302 °F]
Mechanical life (cycles)	1 million cycles (except for 200g versions of V15S05 and V15T10 which are 500,000 cycles)
Contact material	silver, gold-plated \| cadmium-free option available
Housing material	PBT thermoplastic polyester (standard) PET thermoplastic polyester (V15H high temperature, 150 °C [302 °F])
Electrical Rating	16 A 125 Vac/250 Vac

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

V15T16-CZ300A05 Honeywell Micro Switch is an electromechanical switch designed to provide outstanding value in a reliable global package. This switch is often ideal for “low-cost-of-failure” applications, where the cost is minimal to replace or service any failure related to the switch. With a wide variety of operating forces, and amperage ratings, the Honeywell V15T16-CZ200 Micro Switch is design for numerous types of applications. Available in both pin plunger and levered styles, the V15 Series also offers a multitude of termination styles to fit almost any application.

FEATURES

Broad range of electrical loads: 0.1 A, 5 A, 10 A, 16 A, 22 A, 26 A
Long service life: over one million mechanical operations
Gold contacts are also available for controlling logic level/ low energy circuits
World-wide package size acceptance
UL/CSA, cUL, ENEC, and CQC approvals
Variants with cadmium-free contacts available

POTENTIAL APPLICATIONS
