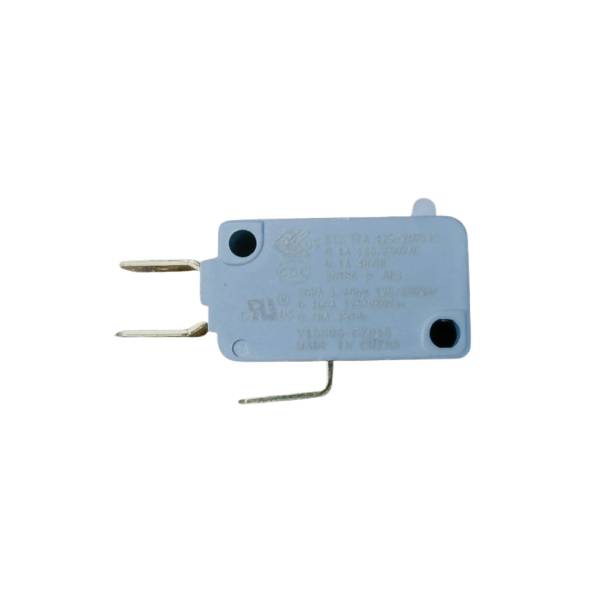

V15S05-CZ015 Honeywell Micro Switch

180.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. V15S05-CZ015
Type V15 Series Standard Basic Switch
Lever Type Pin Plunger
Operating force max.
g [oz]
15 [0.53]
Release force max.
g [oz]
3 [0.11]
Operating position nominal
mm [in]
14,7 [0.58]
Pretravel max. mm [in] 1,6 [0.06]
Differential travel min.mm [in] 0,4 [0.02]
Overtravel max.mm [in] 0,8 [0.03]
Electrical Rating 05

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell V15S05-CZ100A05-01 Micro Switch

Description

V15S05-CZ015 Honeywell Micro Switch , V15 Series is an electromechanical switch designed to provide outstanding value in a reliable global package. Honeywell V15S05-CZ100A05-01 Micro Switch is often ideal for “low-cost-of-failure” applications, where the cost is minimal to replace or service any failure related to the switch. With a wide variety of operating forces, and amperage ratings, the V15 is designed for numerous types of applications. Available in both pin plunger and levered styles, the V15 Series also offers a multitude of termination styles to fit almost any application.

VALUE TO CUSTOMERS
• Wide choice of electrical ratings: 0.1 A, 5 A, 10 A, 16 A, 22 A, 26 A
• Certified for global use: UL/cUL, ENEC, CQC
• Available with pin plungers or integral levers to meet multiple
application and equipment requirements

FEATURES
• Broad range of electrical loads:
0.1 A, 5 A, 10 A, 16 A, 22 A, 26 A
• Long service life: over one million mechanical operations
• Gold contacts are also available for controlling logic level/
low energy circuits
• World-wide package size acceptance
• UL/CSA, cUL, ENEC, and CQC approvals
• Variants with cadmium-free contacts available
