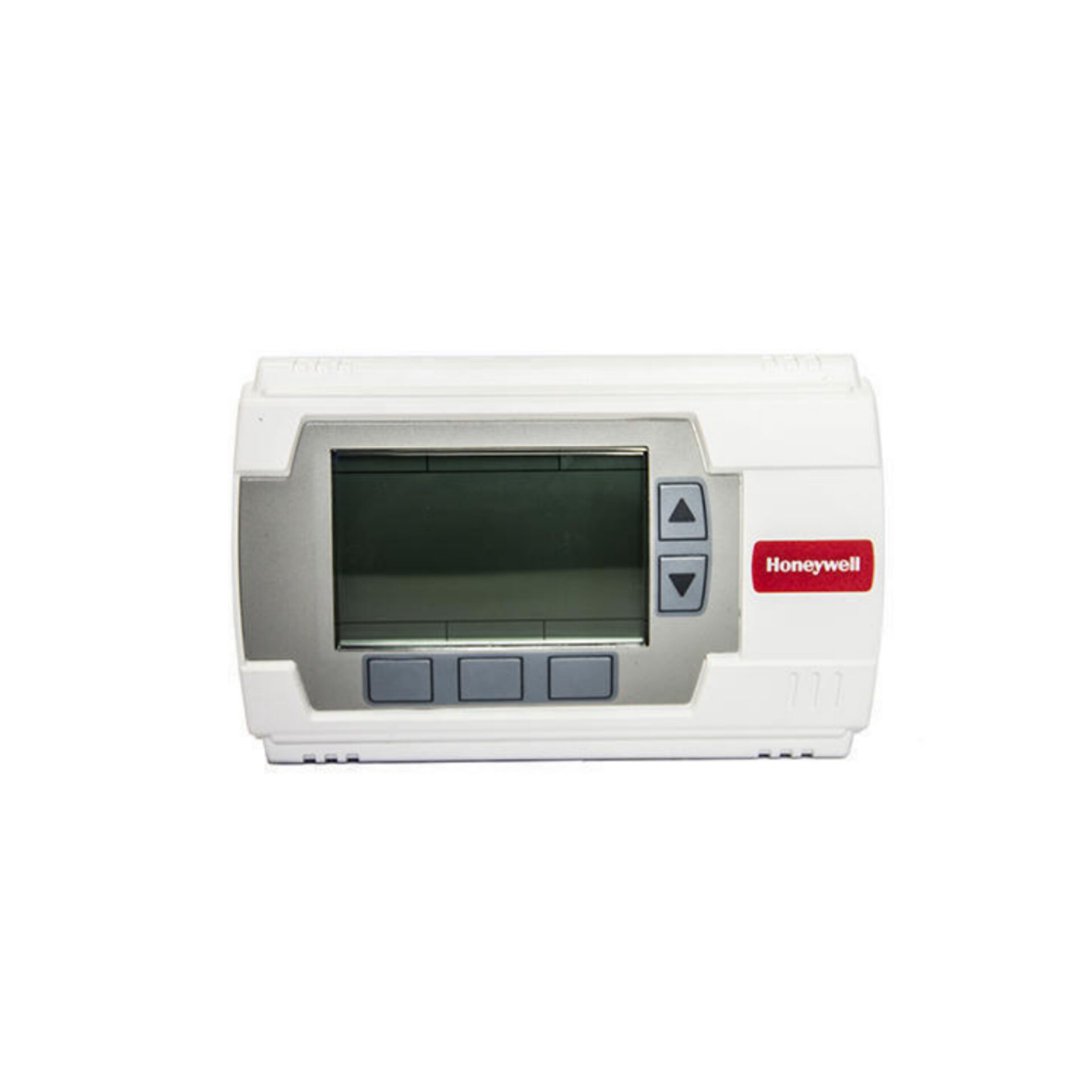

Name: UB4334SEN Honeywell Humidity Controller
SKU: 58043
Price: 11327.00 INR
Availability: InStock

UB4334SEN Honeywell Humidity Controller

₹11,327.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details :

Product	Description
Input Sensor	Any Sensor
Model Name/Number	UB4334SEN
Usage/Application	Controller
Controller Type	Standalone
Power Supply	24V
Brand	Honeywell
Input Resistance	PT1000
Type	Automatic,Semi-Automatic,Manual
Frequency	50 Hz/60Hz
Power consumption	8VA
LCD	Actual and nominal values: 4 digits
Temperature	-20…+65℃
Humidity	＜95%RH
CO2 density	1PPM
Pressure	1 Pa
VDC out put	20Vdc ±10% @ 75mA
IP code	IP20

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

UB4334SEN Honeywell Humidity Controller, UB series stand alone controllers are intended for Heating, Ventilating, Air Conditioning and Refrigeration in comfort control. It can be used to control temperature, humidity and so on. Built-in multiple application programs are selectable. Modulating output with 0…10VDC, 2…10VDC or 4…20mA signal output. Support DIN and Panel installation.

Features:

• Large LCD, English display, beautiful appearance
• Operating voltage AC 24 V
• Multiple application programs selectable via Application Number
• Universal inputs for NTC20K, NTC10K, PT1000 temperature sensors and 0…10 VDC signals
• Modulating output with DC 0…10 VDC, 2…10VDC or 4…20mA signal output, direct or reverse action
• Two-position digital output, direct or reverse action
• PI parameter adjustable
• One Button for winter/summer changeover easily
• Entering or changing of all data via operating buttons on the controller, possible without additional tools
• Support DIN, In-door panel installation
