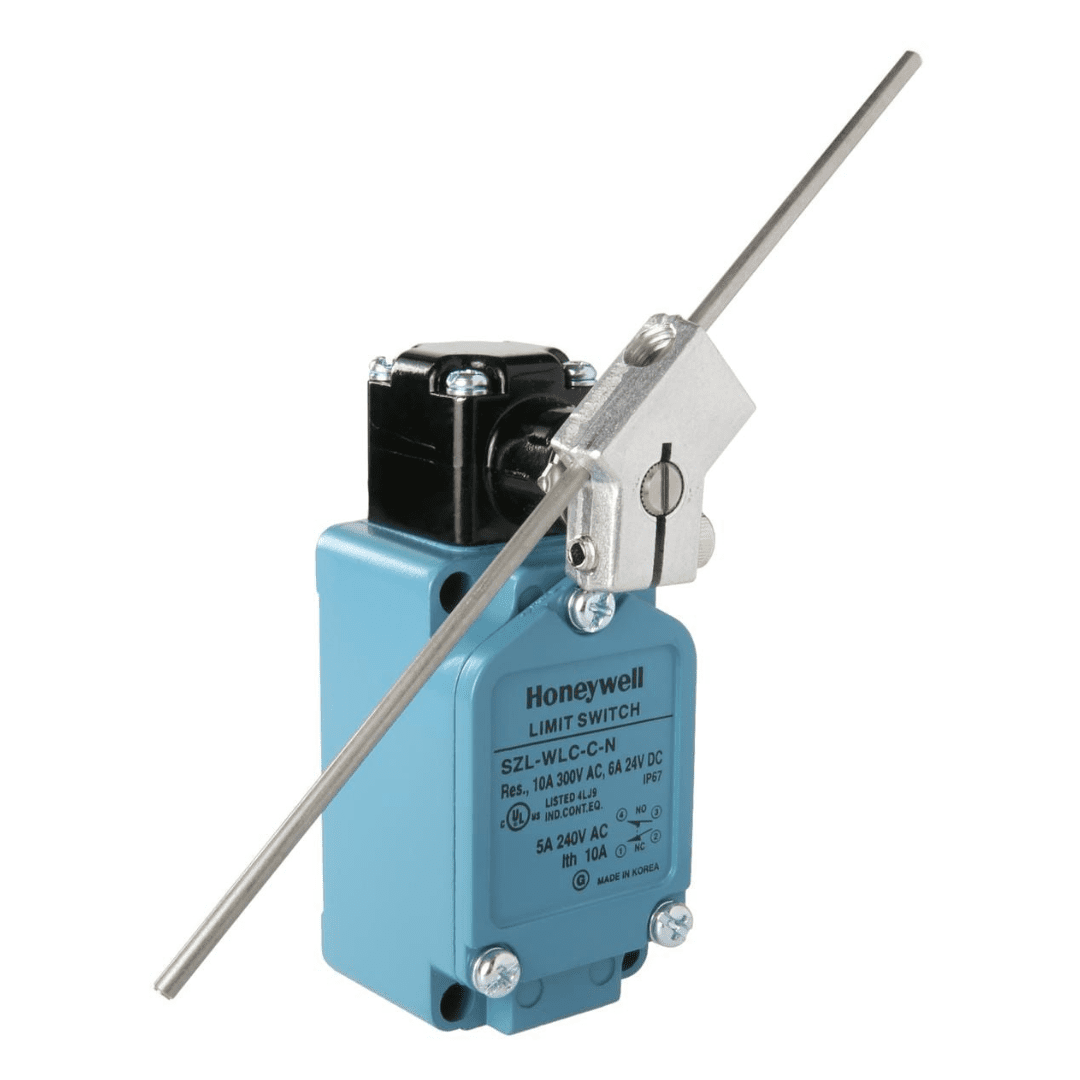

SZL-WLC-C-N Honeywell Limit Switch

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No. SZL-WLC-C-N
Approvals CCC, CE, cULus
Housing material Die-cast metal housing with glass-filled, flame-retardant thermoplastic cover
UL 94 flame spread testing: V-0 rated
Electrical connection Conduit entry or cable gland
Contact design Snap-action (all versions)
Positive-opening contacts (side rotary version only)
Contact material Silver alloy
Electrical ratings AC-15 A300 (380 Vac/0.5 A)
DC-13 Q300 (220 Vdc/0.05 A)
Thermal current (Ith) 10 A/250 Vac (EN 60947-5-1)
Initial contact resistance < 25 mOhm
Insulation resistance >100 MOhm at 500 Vdc

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell BXINDA4L-1A Flameproof Limit Switch

Categories: , Tags:

Description

SZL-WLC-C-N Honeywell Limit Switch

The SZL-VL-S Series miniature-type limit switch is designed for use in applications where limited mounting space is available. With IP67 seal rating, these switches are suitable for OEM machinery that requires a rugged and reliable limit switch capable of being mounted in space restricted applications. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination. The SZL-VL-S Series switches have a split-housing design made of a die-cast body and head with glass-filled, flame retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet a variety of application needs. The SZL-VL-S are available globally and carry certifications for applications around the world.
