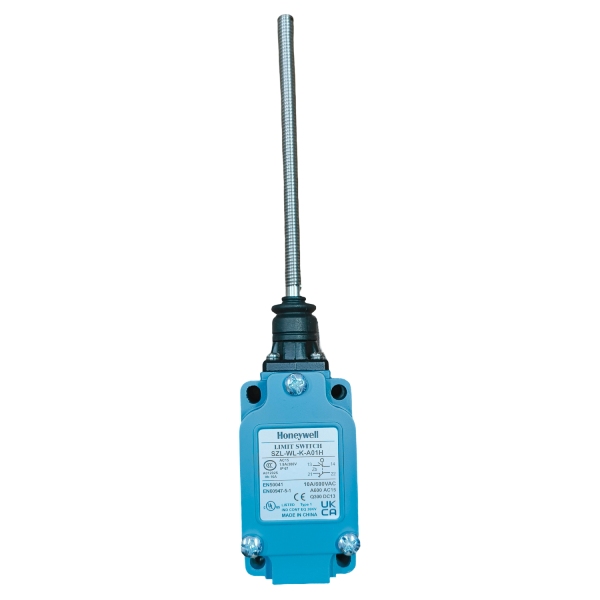

Honeywell SZL-WL-K-A01H Heavy Duty Limit Switch

SZL-WL-K-A01H Honeywell Limit Switch

Name: SZL-WL-K-A01H Honeywell Limit Switch
SKU: 58770
Price: 1138.00 INR
Availability: InStock

₹1,138.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	SZL-WL-K-A01H
Standard	EN50041
Enclosure	Metal
Electrical Rating	AC 15 A600 DC 13 Q300
COO	China
Shock/ Vibration	10g/ 50g
Operating Humidity	<95% RH
Operating Temperature	-25~+120°C
Mechanical life	10,000,000 operations
Operating Speed	0.05mm~2m/s
Operating Frequency	120 ops/min
Contact Resistance	<25mΩ
Degree Of Protection	IP67
Dielectric Strength	2500V
Electrical Life	5 x 10⁵
Contact Type	Snap Action 1NC/1NO

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Categories: Honeywell Limit Switch, SZL-WL Series Tags: General Purpose Limit Switches Heavy Duty General Purpose Limit Switches Heavy Duty Limit Switch Heavy Duty Limit Switches Honeywell Honeywell General Purpose Limit Switches Honeywell Heavy Duty General Purpose Limit Switches Honeywell Heavy Duty Limit Switches honeywell heavy duty llimit switch Honeywell Limit Switches Honeywell SZL-WL-K-A01H Heavy Duty General Purpose Limit Switches SZL-WL-K-A01H Limit Switches

Description
Reviews (0)

Description

SZL-WL-K-A01H Honeywell Limit Switch , SZL-WL Series general purpose limit Limit switches are specially designed for world-wide applications and supported by Honeywell global resources for sales and after sales service. These Honeywell SZL-WL-K-A01H Limit Switches series are designed to the latest IEC Standard. EN50041 Limit Switches are available in metal enclosures. Standard szl-wl switch circuit variations include 2 and 3 circuit variations with forced disconnect mechanism. These series includes features to make quick installation easier & safer and are interchangeable with almost all other makes of EN50041 and EN50047 switches. Customer will benefit from Honeywell’s vast experience in serving world industries over many years.
