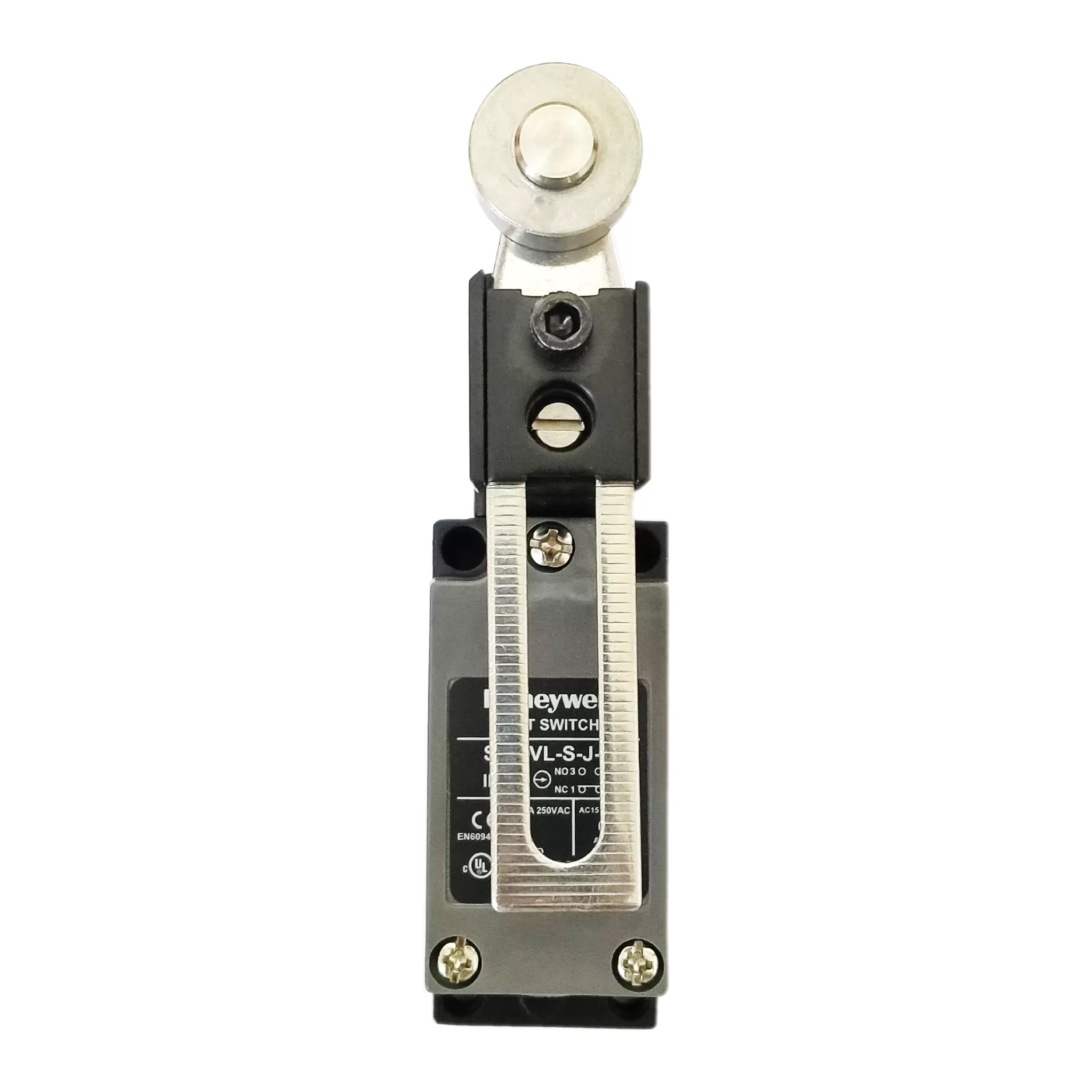

Honeywell Limit Switch SZL-VL-S-J-N

SZL-VL-S-J-N Honeywell Mini Limit Switch

₹520.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No. SZL-VL-S-J-N
Type Side rotary, adjustable lever steel roller, Ø18 x 6,5 Miniature industrial limit switch
Housing material Die-cast metal housing with glass-filled, flame-retardant thermoplastic cover UL 94 flame spread testing: V-0 rated
Contact Material Silver Alloy
Contact design Snap-action (all versions)

Positive-opening contacts (side rotary version only)
Electrical Connection Conduit entry or cable gland
Electrical Ratings AC-15 A300

DC-13 Q300
Dielectric Voltage 1890 Vac for metal housing, 1890 Vac between all terminals to enclosure after durability test
Impulse Voltage 2500 Vdc
Thermal current (Ith) 10 A/250 Vac
Leakage Current < 10 mA
Humidity 95 %RH
Shock 30 G, conforming to IEC 60068-2-27
Vibration 10 G, 10 Hz to 55 Hz displacement amplitude 0,75 mm, conforming to IEC 60068-2-6 (wobble excluded)
Operating Temperature -20°C to 70°C (with no icing)
Operating speed 0,05 mm/s to 2 m/s (based on pin plunger limit switch)
Operating frequency Mechanical: 120 ops/min; Electrical: 30 ops/min
Mechanical life 10M cycles @ 120 cpm max
Electrical life 0.5M cycles @ 30 cpm max. under the rated resistance load
Weight 120 g to 150 g
Approvals CCC, CE, cULus
Pollution Degree 3
Environmental Sealing IP67
COO China

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell Limit Switch SZL-VL-S-J-N

Categories: , Tags:

Description

The SZL-VL-S-J-N Honeywell Mini Limit Switch , SZL-VL-S Series miniature-type limit switch is designed for use in applications where limited mounting space is available. With IP67 seal rating, these switches are suitable for OEM machinery that requires a rugged and reliable limit switch capable of being mounted in space restricted applications. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination. The Mini Limit Switch SZL-VL-S-J-N, SZL-VL-S Series switches have a split-housing design made of a die-cast body and head with glass-filled, flame retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet a variety of application needs. The SZL-VL-S are available globally and carry certifications for applications around the world

FEATURES

  1. Approvals: CCC, CE, cULus
  2. Sealed to IP67, NEMA 1, 12, 13
  3. Snap-action contacts
  4.  Die-cast metal housing with glass-filled, flame-retardant thermoplastic cover
  5.  Stainless steel levers with either steel and nylon rollers
  6.  Variety of actuators
  7. Positive-opening contacts (side rotary version only)
  8. RoHS compliant
  9. Utilization category: AC-15 A300 (380 Vac/0.5 A) DC-13 Q300 (220 Vdc/0.05 A)
  10. Mechanical life rating: 10 million cycles
  11.  Electrical life rating: 0.5 million cycles

APPLICATIONS

  1. Scissor/boom position detection
  2. Vehicle accessibility lifts
  3. Escalators/Motorized walkways
  4.  Machine tools
  5. Mobile light towers
  6. Packaging equipment
  7. Conveyor equipment
  8. Overhead doors
  9. Agriculture equipment
  10. Rail passenger cars (internal doors)
