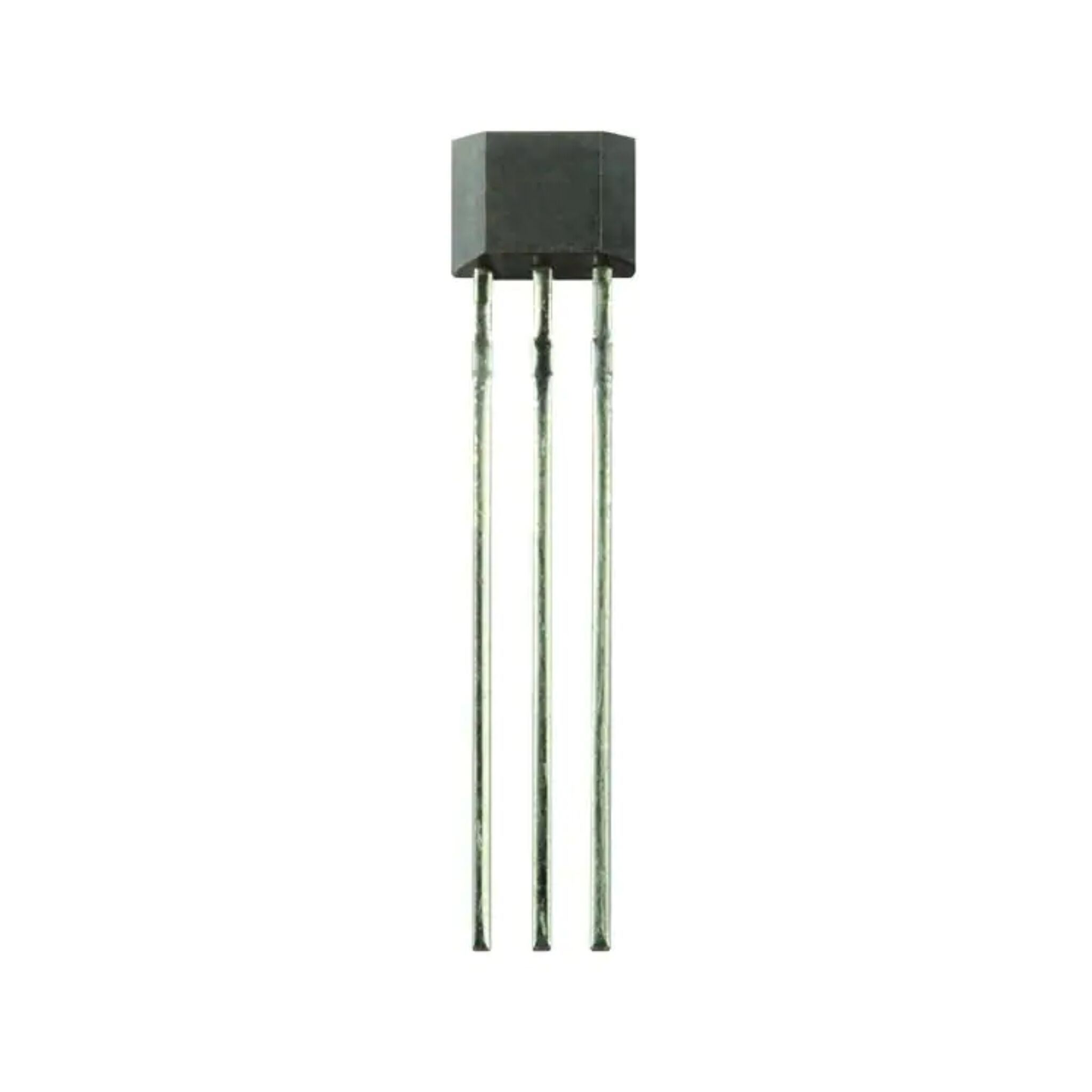

SS441R Honeywell Hall Effect Sensor

Available on order

Product Details:

Product Description
Brand Honeywell
Model No.
SS441R
Operating Supply Current 3.5 mA
Maximum Output Current 8 mA
Operating Point Min/Max 35 G to 135 G
Release Point Min/Max (Brp) 10 G to 120 G
Operating Supply Voltage 24 V
Minimum Operating Temperature – 40 C

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

SS441R Honeywell Hall Effect Sensor

The SS340RT/SS440R sensor ICs are small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet. They are designed to respond to a single pole: North (SS340RT) or South(SS440R).
These unipolar Hall ICs are supplied in three different magnetic sensitivities to meet a wide range of potential applications:
• SS341RT and SS441R offer the highest sensitivity, with a typical operating point of 75 G at 25 °C [77 °F].
• SS343RT and SS443R offer medium sensitivity, with a typical operating point of 135 G at 25 °C [77 °F].
• SS349RT and SS449R offer the lowest sensitivity, with a typical operating point of 305 G at 25 °C [77 °F].
These sensors are available in two package styles:
• The SS340RT is available in the miniature SOT-23 surface mount package.
• SS440R is available in the leaded, flat TO-92-style package.
The SS340RT’s small size requires less PC board space, allowing it to be used in smaller assemblies. Its 3 Vdc capability
allows for use in low voltage applications, promoting energy efficiency. The SS340RT Series is available on tape and reel (3000 units per reel); the SS440R Series is available in a bulk package (1000 units per bag).
