SS411A Honeywell Hall Effect Sensor

Description

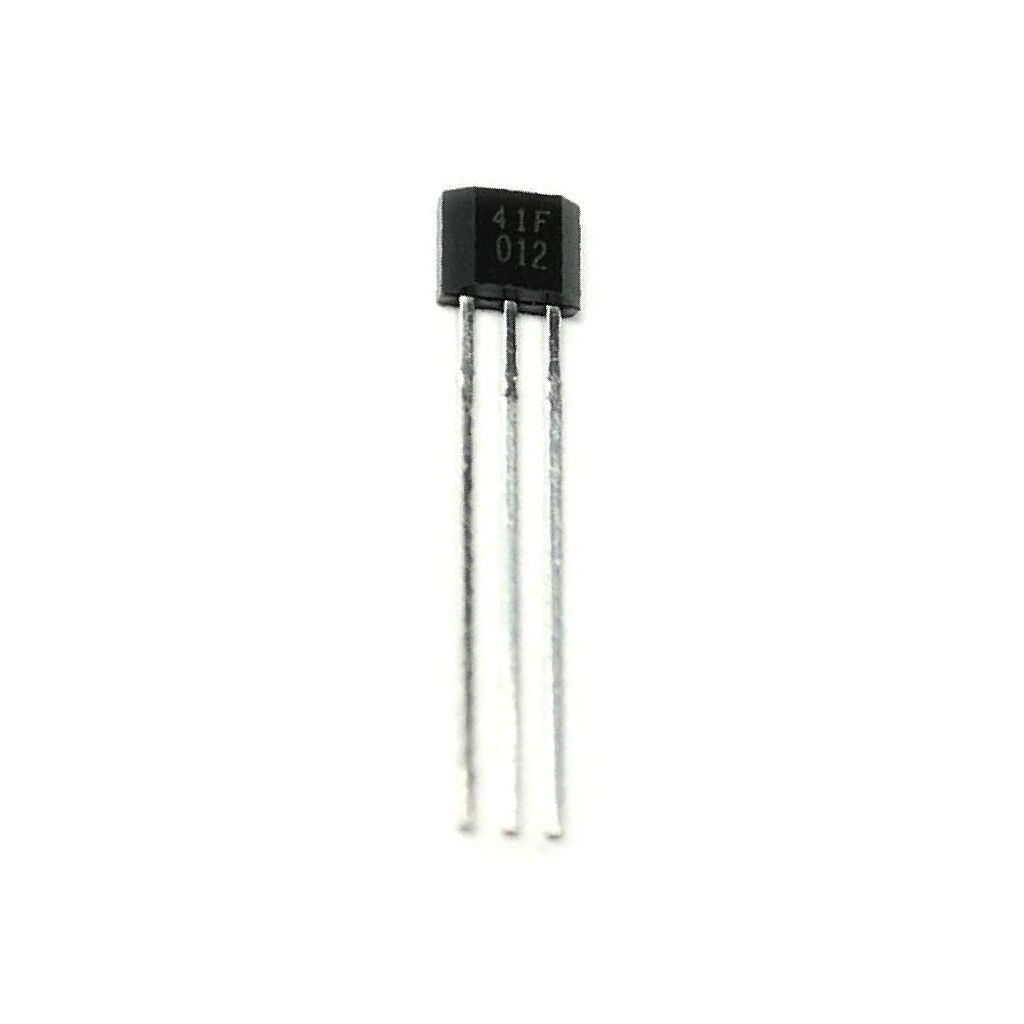

SS411A Honeywell Hall Effect Sensor

The SS400 Series and SS500 Series are small and versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet, and
are designed to respond to alternating North and South poles, or to a South pole only. They are available in bipolar, latching or unipolar magnetics. On-board regulation provides stable operation over a 3.8 Vdc to 30 Vdc supply voltage range. These sensors are capable of continuous 20 mA sinking output and may be cycled as high as 50 mA max. The 3.8 V capability allows for use in many potential low voltage applications. The digital, open collector sinking-type output is easily interfaced with a wide variety of electronic circuits. To provide reliable products and consistent quality, the SS400 Series products are tested at both 25°C [75°F] and 125°C [257°F]. All catalog listings are qualified for operation up to 150°C [302°F]

FEATURES
• Quad Hall IC design minimizes mechanical stress effects
• Temperature-compensated magnetics help provide stable operation over a wide temperature range of -40°C to 150°C [-40°F to 302°F]
• Broad, inclusive supply voltage capability from 3.8 Vdc to 30 Vdc for application flexibility
• Digital, open collector sinking output for easy interfacing with a variety of common electronic circuits
• High sensitivity versions available for potential applications requiring high accuracy or wide gaps
• Bipolar, latching or unipolar magnetics

POTENTIAL APPLICATIONS
• Industrial: Speed and RPM (revolutions per minute) sensing, tachometer, counter pickup, flow-rate sensing, brushless dc (direct current) motor commutation, motor and fan control, robotics control
• Transportation: Speed and RPM (revolutions per minute) sensing, tachometer, counter pickup, motor and fan control, electric window lift, convertible roof position
• Medical: Motor assemblies, medication dispensing control
