Name: PX2AG1XX010BSCHX Honeywell Pressure Transmitter
SKU: 64370
Price: 5200.00 INR
Availability: OutOfStock

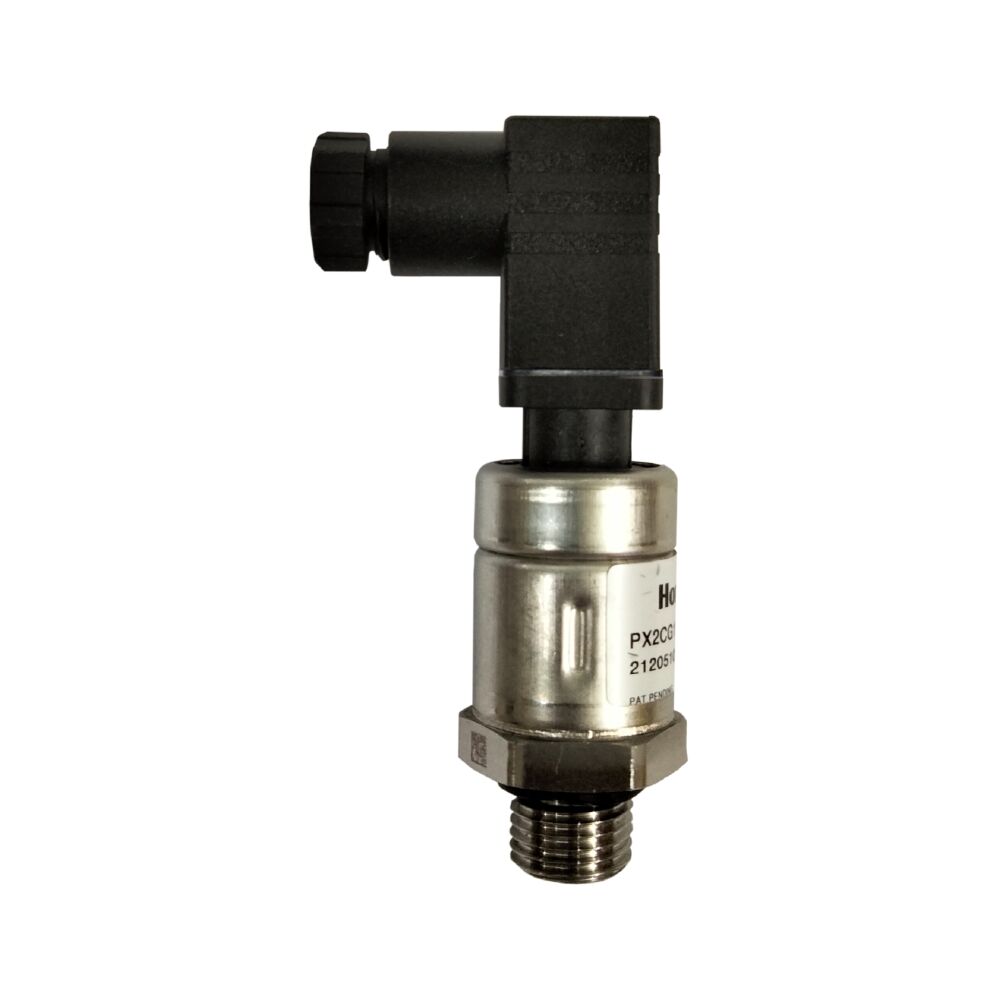

PX2AG1XX010BSCHX Honeywell Pressure Transmitter

Available on order

₹5,200.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	PX2AG1XX010BSCHX
Type	Heavy Duty Pressure Transducer
Electrical Connector Type	Metri-Pack 150, Standard (UL 94 HB)2
Pressure Port Type	G1/4 (ISO 1179-3)
Housing	Stainless steel
Temperature Range	-40°C to 125°C
Pressure Range	10 bar
Pressure Reference	Sealed gage
Current	4 mA to 20 mA
Operating temperature Range	-40°C to 125°C
Storage temperature range	-40°C to 125°C
Accuracy	±0.25 %FSS
Response time	<2 ms
Life	minimum of 10 million cycles to operating pressure

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

PX2AG1XX010BSCHX Honeywell Pressure Transmitter is a portfolio of configurable pressure sensors that use piezoresistive sensing technology with ASIC (Application Specific Integrated Circuit) signal conditioning in a stainless steel housing. The Honeywell PX2AG1XX010BSCHX Pressure Transmitter, PX2 Series is fully calibrated and compensated for offset, sensitivity, temperature effects and non-linearity using the on-board ASIC. These transducers measure absolute, sealed gage, or vented gage pressure. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure, sealed gage versions have an internal pressure reference of one atmosphere at sea level, and vented gage versions measure pressure with respect to ambient pressure. They are RoHS compliant and are designed and manufactured according to ISO 9001 standards.
