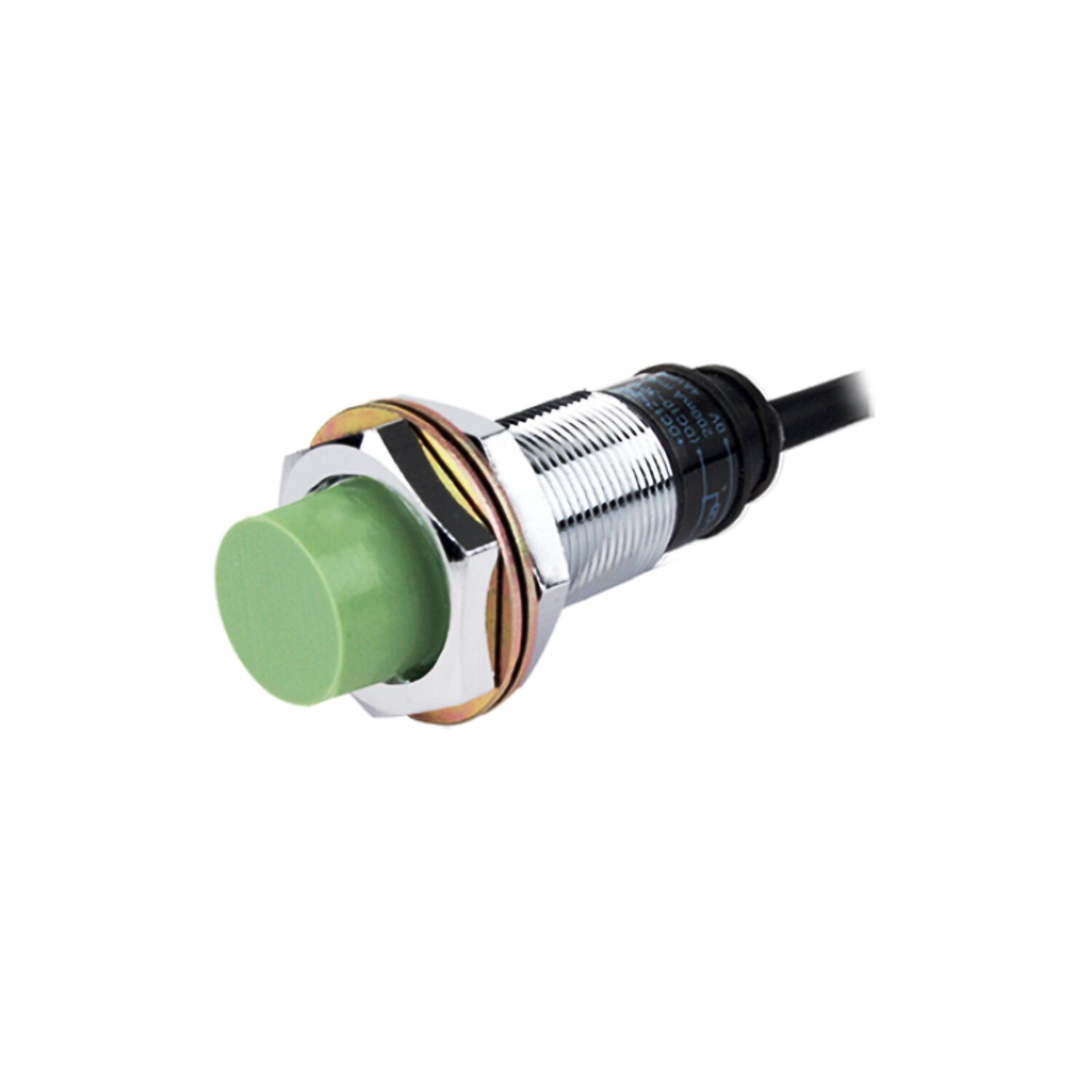

PRT18-8DO Autonics Proximity Sensor

Available on order

1,270.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model PRT18-8DO
Wire type and power DC 2-wire type 12-24VDC
Sensing side diameter M18
Sensing distance 8mm
Installation Non-shield(non-flush)
Standard sensing target 25×25×1mm(iron)
Response frequency 350Hz
Current specification Leakage current: Max. 0.6mA
Control output Normally Open
Material Brass(nickel plated)
Cable Standard/material Standard cable
Protection structure IP67
Approval CE
Body length Standard type
Environment Ambient temperature -25 to 70 Deg C.
Environment Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Residual voltage Max. 3.5V
Weight Approx. 122g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

PRT18-8DO Autonics Proximity Sensor

Features

  1. Improved the noise resistance with dedicated IC (DC 3—wire)
  2. Reverse power polarity, surge, overcurrent protection.
  3. Long life cycle and reliable simple operation
  4. Red LED status indication
  5. IP67 rated waterproof structure (IEC standard)
  6. Replacer for micro switches and limit switches
