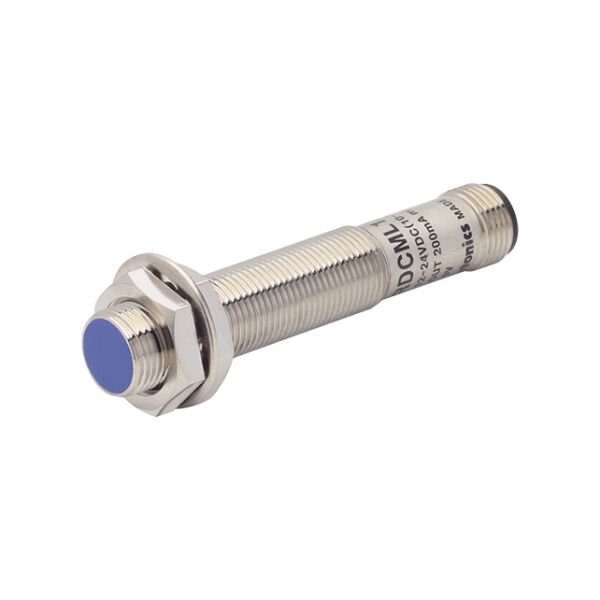

Autonics Inductive Proximity Sensor PRDCML12-4DN

PRDCML12-4DN Autonics Inductive Proximity Sensor

Available on order

₹2,562.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. PRDCML12-4DN
Wire type and power DC 3-wire type 12-24VDC
Sensing side diameter M12
Sensing distance 4mm
Installation Shield(flush)
Standard sensing target 12×12×1mm(iron)
Response frequency 500Hz
Current specification Current consumption: Max. 10mA
Control output NPN Normally Open
Material Brass(nickel plated)
Cable Standard/material Standard connector
Protection structure IP67
Approval CE, EAC
Body length Long body
Environment Ambient temperature -25 to 70℃, storage: -30 to 80℃
Environment Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Residual voltage Max. 1.5V
Weight ≈ 24g (≈ 54g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Category: Tags:

Description

PRDCML12-4DN Autonics Inductive Proximity Sensor

Features:

  1. Long sensing distance (1.5 to 2 times longer sensing distance guaran-teed compared to existing models)
  2. Advanced durability as comprehensive existing case and rear cap structure
  3. Easy to check operation from various angles with 4-side LED
  4. Shorten the time of maintenance
  5. Improved the noise resistance with dedicated IC
  6. Built-in surge protection, reverse polarity protection, overcurrent protection circuit
  7. Red LED operation indicator
  8. Protection structure IP67(IEC standard)
