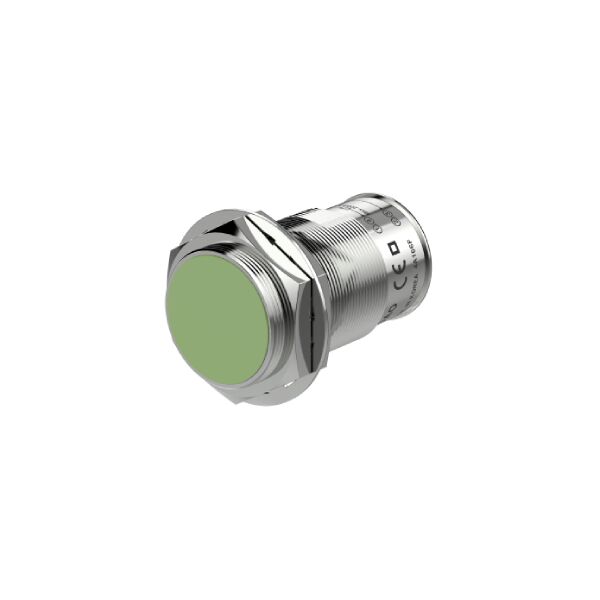

PRCM30-10AO Autonics Inductive Proximity Sensor

Available on order

2,802.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model PRCM30-10AO
Wire type and power AC 2-wire type 100-240VAC
Sensing side diameter M30
Sensing distance 10mm
Installation Flush
Standard sensing target 30×30×1mm(iron)
Response frequency 20Hz
Current specification Leakage current: Max. 2.5mA
Control output Normally Open
Material Brass(nickel plated)
Cable Standard ( material ) Standard connector
Protection structure IP67(IEC standard)
Approval CE
Body length Standard type
Environment Ambient temperature -25 to 70℃, storage: -30 to 80℃
Environment Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Residual voltage Max. 10V
Weight Approx. 154g(approx. 142g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

PRCM30-10AO Autonics Inductive Proximity Sensor

Features:

  1. Shorten the time of maintenance
  2. Improved the noise resistance with dedicated IC
    (DC 3-wire type)
  3. Reverse power polarity (DC 3-wire), surge,
    overcurrent protection (DC type)
  4. Red LED status indication
  5. IP67 rated waterproof structure (IEC standard)
  6. Replacer for micro switches and limit switches
