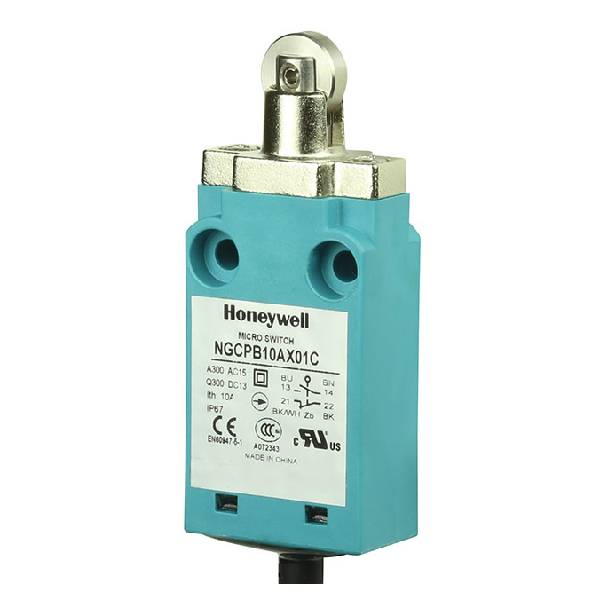

NGCPB10AX01C Honeywell Limit Switch

Product Details:

Product	Description
Brand	Honeywell
Model No.	NGCPB10AX01C
Sealing	NEMA 1, 4, 12, 13; IP67 per IEC 60529 suitable for outdoor applications
Contacts	snap action, positive break standard: silver alloy; gold: gold-plated
Operating temperature	-25 °C to 70 °C [ -13 °F to 158 °F]
Pollution degree	3
Humidity	95 %RH max.
Operating speed	0,3 mm/s to 2 m/s
Shock	50 g for 11 ms as per IEC 60068-2-27; railway application, per IEC 61373 Class I Car B type
Approvals	UL (UL508), cUL, CE (IEC 60947-5-1), CCC (GB14048.5-2008)
Housing	Plastic
Connection	Bottom exit
Cable Length	1,0 m [3.28 ft]
Connector/Cable Exiting Housing	Standard cable
Connector at End of Cable	None
Switch Type	1NC/1NO snap action silver contacts
Head Type	Roller plunger

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

NGCPB10AX01C Honeywell Limit Switch is a configurable platform of medium duty switches that allow the customer to choose SPDT (single pole, double throw) or DPDT (double pole, double
throw) circuitry while maintaining the same housing and mounting footprint throughout the NGC Series. MICRO SWITCH NGC Series can be configured more than 380,000 ways, carries global approvals, and are sealed to IP67 for potential use in indoor and outdoor applications.

FEATURES

SPDT or DPDT configurable circuitry
Snap-action, positive-break contacts
Silver alloy and gold-plated contact options
UL, CE, cUL, and CCC approvals
Conforms to IEC 60947-5-1, IEC 61373, EN45545-2 (metal variants with M12 connectors only)
NEMA 1, 4, 12, 13; IP67 sealing
Metal and plastic housing options
Low and high temperature variants
Cable and connector terminations
Variety of heads and actuator levers
