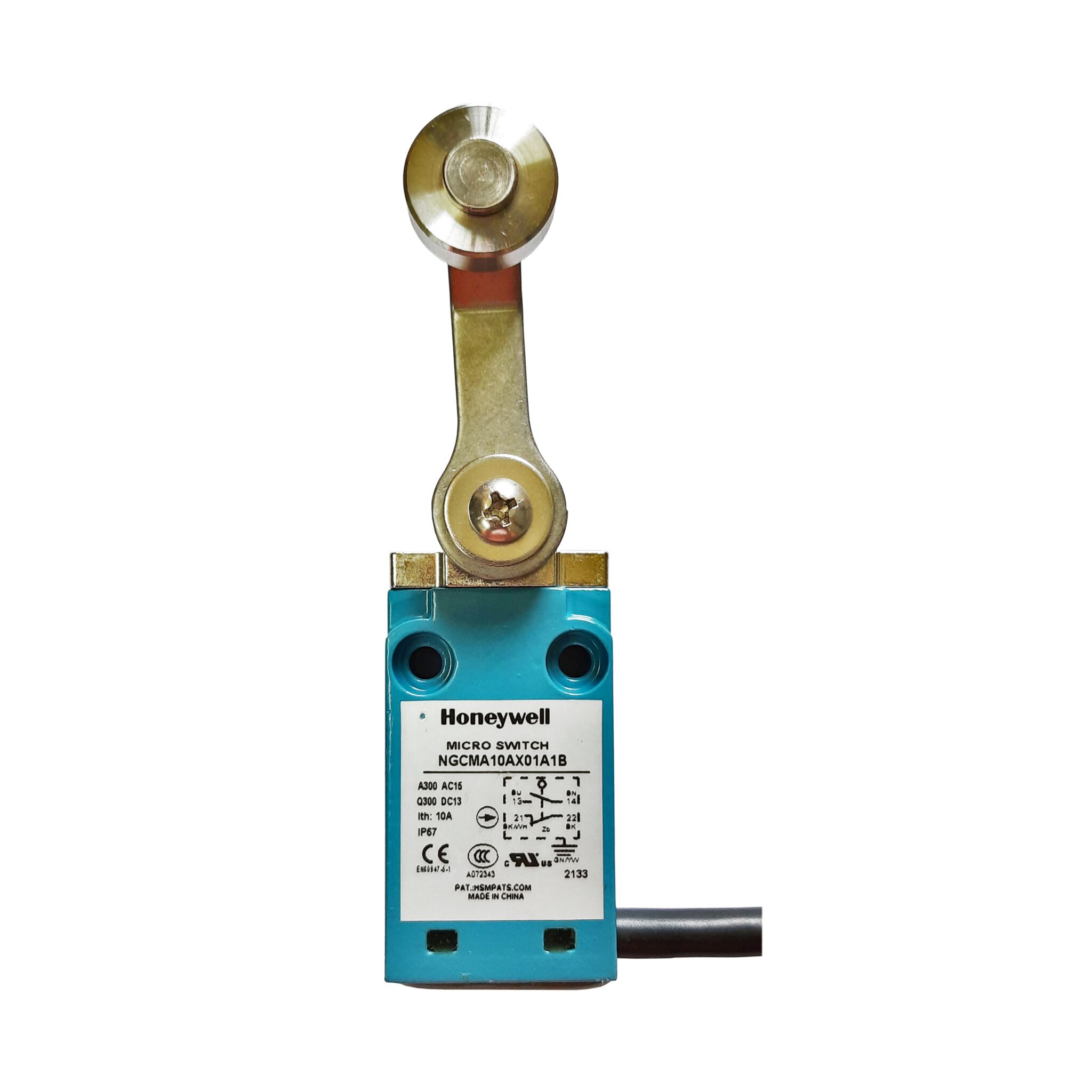

Honeywell NGCMA10AX01A1B Limit Switch

NGCMA10AX01A1B Honeywell Limit Switch

₹2,899.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

Product Details:

Product Description
Brand Honeywell
Model No.
NGCMA10AX01A1B
Sealing NEMA 1, 4, 12, 13; IP67 per IEC 60529 suitable for outdoor applications
Contacts snap action, positive break standard: silver alloy; gold: gold-plated
Operating temperature -25°C to 75°C [ -13°F to 167°F]
Pollution degree 3
Humidity 95 %RH max.
Operating speed 0,3 mm/s to 2 m/s
Shock 50 g for 11 ms as per IEC 60068-2-27; railway application, per IEC 61373 Class I Car B type
Approvals UL (UL508), cUL, CE (IEC 60947-5-1), CCC (GB14048.5-2008)
Housing Metal
Connection Side exit, right
Cable Length 1,0 m [3.28 ft]
Connector/Cable Exiting Housing Standard cable
Connector at End of Cable None
Switch Type 1NC/1NO snap action silver contacts
Head Type Side rotary
Levers – Optional (Side Rotary Head Only) Levers – Optional (Side Rotary Head Only)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Categories: , Tags:

Description

NGCMA10AX01A1B Honeywell Limit Switch is  a configurable platform of medium duty switches that allow the customer to choose SPDT (single pole, double throw) or DPDT (double pole, double
throw) circuitry while maintaining the same housing and mounting footprint throughout the NGC Series. MICRO SWITCH NGC Series can be configured more than 380,000 ways, carries global approvals, and are sealed to IP67 for potential use in indoor and outdoor applications.

FEATURES

  1. SPDT or DPDT configurable circuitry
  2. Snap-action, positive-break contacts
  3. Silver alloy and gold-plated contact options
  4. UL, CE, cUL, and CCC approvals
  5. Conforms to IEC 60947-5-1, IEC 61373, EN45545-2 (metal variants with M12 connectors only)
  6. NEMA 1, 4, 12, 13; IP67 sealing
  7. Metal and plastic housing options
  8. Low and high temperature variants
  9. Cable and connector terminations
  10. Variety of heads and actuator levers
