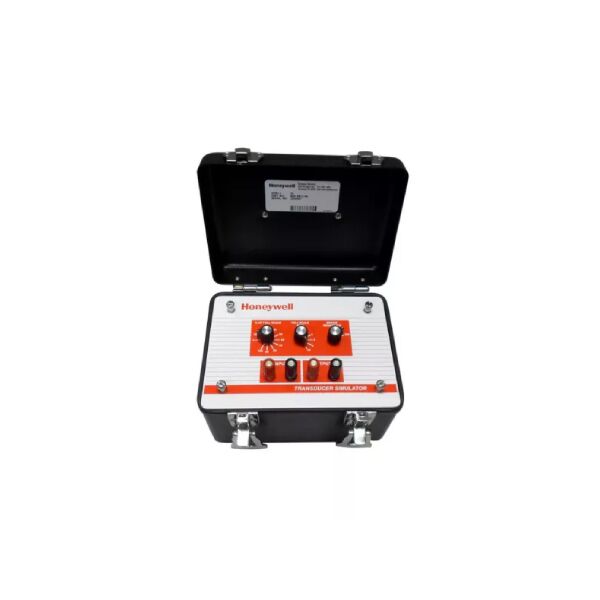

Model TS Honeywell Strain Gage Transducer Simulator

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model TS
Input excitation requirements	4.5 Vdc to 12 Vdc, constant voltage only
Input resistance	350 ohm or 5000 ohm
Output adjustment	0 % to 100 % in 10 % steps
Output linearity and hysteresis, typical	±0.05 % of full scale

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Model TS Honeywell Strain Gage Transducer Simulator

DESCRIPTION

The Model TS is a strain gage transducer simulator for use in
calibration or testing display/indicators and signal conditioning
amplifiers (pressure, force, torque or weigh systems). It greatly
assists in trouble shooting, and testing of systems that use strain
gage transducers. The Model TS simulates either a 350 ohm or
5000 ohm strain gage transducer bridge with precise adjustments for transducer sensitivities in five ranges in 0.5 mV/V to
10 mV/V. The output adjustments are in 10 % increments from 0
to 100 % of each of the above ranges. No batteries to replace
as the excitation voltage is supplied by the instrument to be
calibrated.
