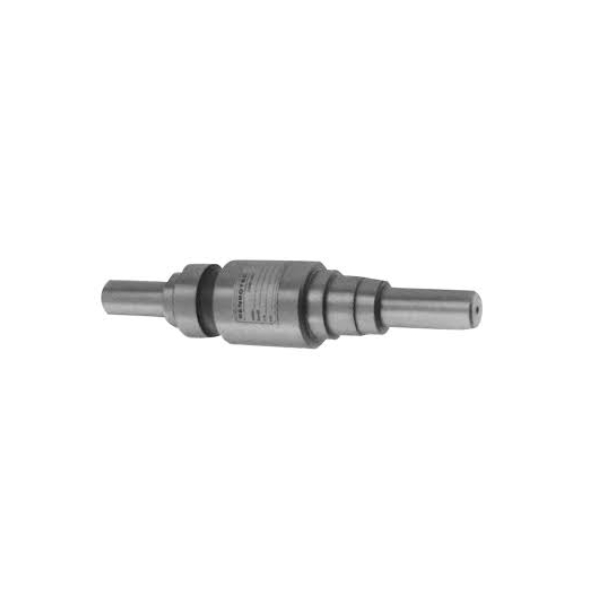

Model QSFK-9 Honeywell Torque Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model QSFK-9
range	100 in-lb to 24000 in-lb
System accuracy	±0.1 % full scale
Linearity	±0.1 % full scale
Hysteresis	±0.1 % full scale
Non-repeatability	±0.03 % full scale
Output	2 mV/V nominal

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Model QSFK-9 Honeywell Torque Transducers

DESCRIPTION
Model QSFK-9 shaft reaction torque transducer is designed for
installation between test pieces such as motors, switches, axles
or shafts and their mounting plate. These models operate and
are calibrated in both directions. Stainless steel construction enhances durability in harsh, industrial environments. These models have no moving parts and utilize four bonded strain gages
on a special machined portion of the transducer to achieve a
maximum non-linearity of 0.1% over a wide dynamic range.
Typical applications include tire braking, motor dynamometers,
friction-skid testing, and twist measurement.
