Model MA23 Honeywell Accelerometer

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model MA23
Dynamic range	±10 G
Frequency range	5 Hz to 14 kHz ±10 %
Temperature, operating	-57 °C to 121 °C [-70 °F to 250 °F]
Sensitivity	1 V/G
Transverse Sensitivity	5 % max.
Temperature Sensitivity	0.145/°F

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

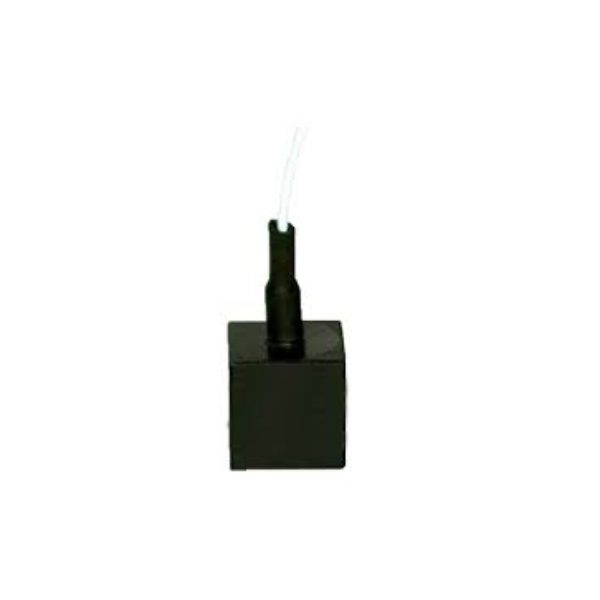

Model MA23 Honeywell Accelerometer

DESCRIPTION

The Model MA23 subminiature amplified piezoelectric accelerometers are designed to be used in laboratory testing, modal
analysis studies, and structural monitoring. The constant current
low output impedance output combined with the ability to drive
high load capacitance allows long runs of low cost cable without
degradation of data. The Model MA23 features a high natural
frequency, a high sensitivity, a wide frequency range and a flat
sensitivity vs. temperature response over the temperature range.
The model MA23 would normally be mounted to the structure
using beeswax or adhesive. The model MA23 can be supplied
with different cable lengths.
