Model MA21 Honeywell Accelerometer

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model MA21
Temperature, operating	-12 °C to 138 °C [10 °F to 280 °F]
Sealing	IP67/NEMA 4
Dynamic Range	±80 G
Sensitivity	100 mV/G ±10 % @ 80 Hz
Transverse Sensitivity	Less than 5 %
Temperature Sensitivity	0.145/°F

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

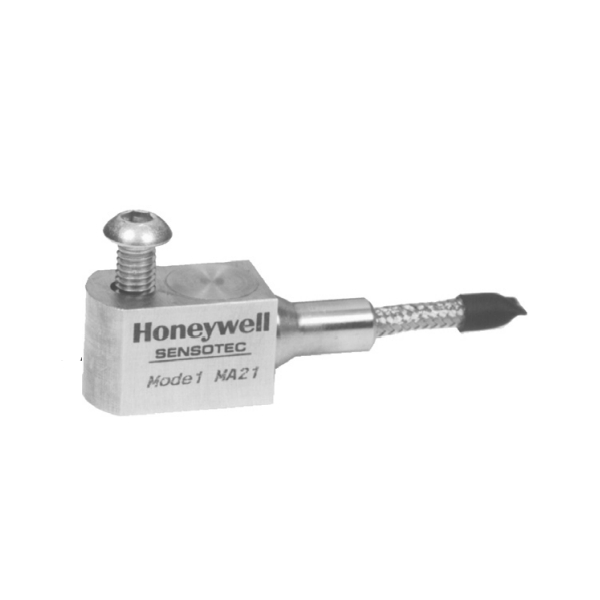

Model MA21 Honeywell Accelerometer

DESCRIPTION
The Model MA21 miniature, low profile amplified piezoelectric
accelerometers are designed to be used in Industrial test and
automation environments including laboratory testing, modal
studies, and test cells where head room is limited and where
a low profile unit is desirable. The constant current low output
impedance output combined with the ability to drive high
load capacitance allows long runs of low cost cable without
degradation of data. The Model MA21 features a high natural
frequency, a wide frequency range and a flat sensitivity vs.
temperature response over the temperature range. The seismic
element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity. The stainless steel materials
are non-magnetic resulting in very low magnetic field susceptibility. These features, together with a sealed body, assure accurate and reliable data.
