Model LFH-7I Honeywell Load Cell

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model LFH-7I
Load ranges	250 lb to 10000 lb
Accuracy	±0.7 % full scale
Operation	Compression only
Temperature, operating	-54 °C to 121 °C [-65 °F to 250 °F]
Temperature, compensated	15 °C to 71 °C [60 °F to 160 °F]
Storage temperature	-70 °C to 149 °C [-100 °F to 300 °F]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

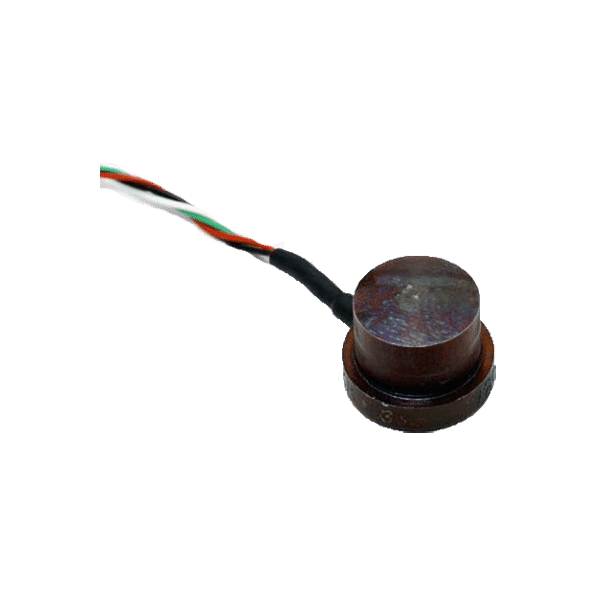

Model LFH-7I Honeywell Load Cell

Model LFH-7I subminiature load cell is a low profile force
transducer for applications with minimal space and high
capacity requirements. This transducer utilizes foil strain gages
to measure compression loads of up to 10,000 lb and achieves
accuracy of ±0.7 % full scale. The top of the load cell is the area
where the force is applied and the base ring of the load cell
must be placed on a hard, machine-ground flat surface to obtain
optimum accuracy.
