Model D Honeywell Load Cell

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model D
Accuracy	1 %
Linearity (max.)	±0.5 % full scale
Hysteresis (max.)	±0.5 % full scale
Non-repeatability (max.)	±0.1 % full scale
Operation	Compression
Resolution	Infinite

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

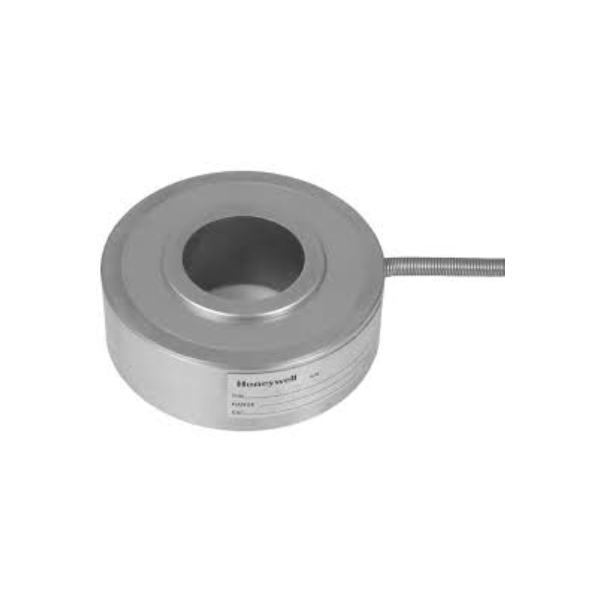

Model D Honeywell Load Cell

The Model D Donut Shaped Load Cell features a smooth thruhole design often ideal for applications which require the load
structure to pass directly through the cell. Such applications
include bolt force measurements, clamping forces, and
monitoring overloads. Load ranges as low as 150 grams and as
great as 30,000 pounds can be measured within a maximum full
scale non-linearity and hysteresis of ±0.5 % F.S., respectively.
These models are used in compression applications and
are available in multiple hole and frame sizes. For optimum
performance, these cells must be mounted between load
surfaces which are flat and parallel. The Model D miniature load
cell is designed to have a minimum thickness.
