Model 355 Honeywell Pressure Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model 355
Pressure Range	0 psig – 500 psig to 0 psig – 5000 psig
Accuracy	±0.50 %7
Output	4 mA to 20 mA (std)
Temperature (Operating)	-29 °C to 85 °C [-20 °F to 185 °F]
Temperature (Compensated)	15 °C to 71 °C [60 °F to 160 °F]
Temperature Effect (Zero)	0.01 % full scale/°F

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

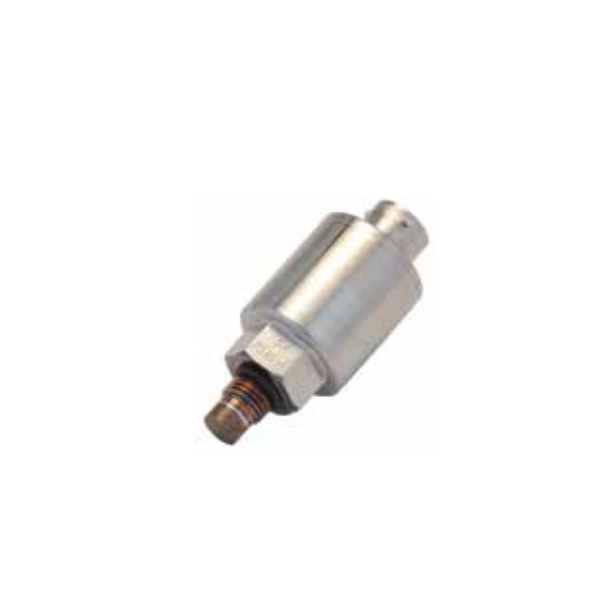

Model 355 Honeywell Pressure Transducers

DESCRIPTION

Subminiature Model 355 gage pressure transducer is a rugged,
one-piece, stainless steel unit which features a flush diaphragm
design, making it ideal for operations which involve the spraying
or application of sealants, paints, coatings or other congealable
media which can clog conventional pressure ports. The internally amplified Model 355 accepts input voltage from 9 Vdc to 32
Vdc and delivers a high level 4 mA to 20 mA or 0 V to 5 V output.
The Model 355 is all welded and hermetically sealed for reliable
performance in corrosive environments.
