Model 1388-102 Honeywell Torque Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model 1388-102
Torque range	500, 1000 lb-in
Non-linearity	±0.1 % of rated output
Hysteresis	±0.1 % of rated output
Repeatability	±0.15 % of rated output
Output @ rated capacity	2.0 mV/V (nominal)
Temperature, operating	-29 °C to 93 °C [-20 °F to 200 °F]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

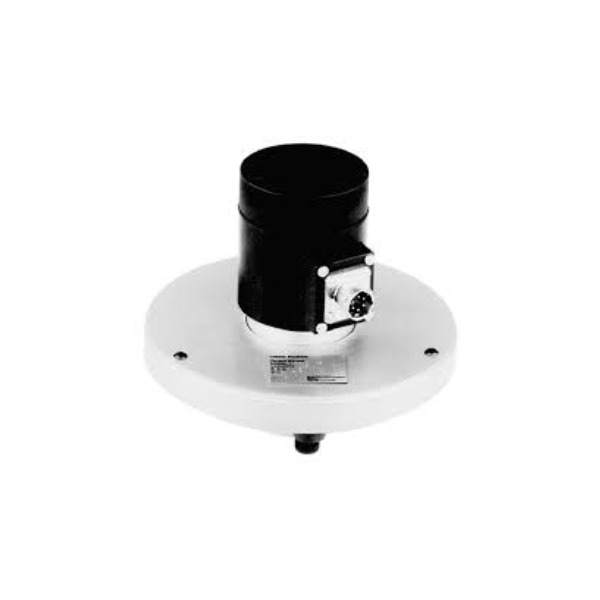

Model 1388-102 Honeywell Torque Transducers

DESCRIPTION

Originally designed for a precision feedback control loop on
textile machinery, the Model 1388 Sprocket/Pulley Torque Sensor
is an accurate method to measure processing torques. Coupled
to any belt or chain driven stub shaft and monitored by a closed
electrical circuit, machinery speeds and material feed rates can
be precisely controlled. Used in an automation application to
increase productivity and decrease power consumption. Rotary
transformer with encoder option available.
