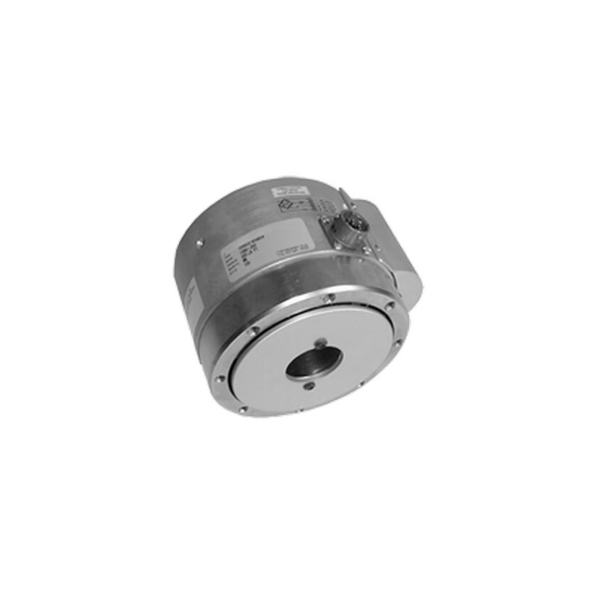

Model 1369 Honeywell Torque Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model 1369
Torque range	50, 100, 200 lb-ft
Non-linearity	<0.50 % of rated output
Hysteresis	<0.50 % of rated output
Repeatability	±0.35 % of rated output
Output @ rated capacity	±2 mV/V (nominal)
Temperature, operating	-29 °C to 93 °C [-20 °F to 200 °F]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Model 1369 Honeywell Torque Transducers

DESCRIPTION

The automobile wheel torque sensor is designed to be bolted to
the brake drum or spindle of a car or truck in place of the regular
wheel. The wheel is then bolted to the torque sensor. This moves
the wheel outward approximately 1-1⁄2 inches from its original
location. A slip ring or rotary transformer assembly is provided
to connect the torque sensor to an instrument in the vehicle.
The sensor is normally furnished with one adapter plate for one
given stud pattern. Also, on some models, a dc tachometer or
60-tooth gear and magnetic pickup generator can be supplied
which provides a signal proportional to wheel speed. Standard
capacity ranges of 20K, 30K, and 36K in-lb, others available
upon request.
