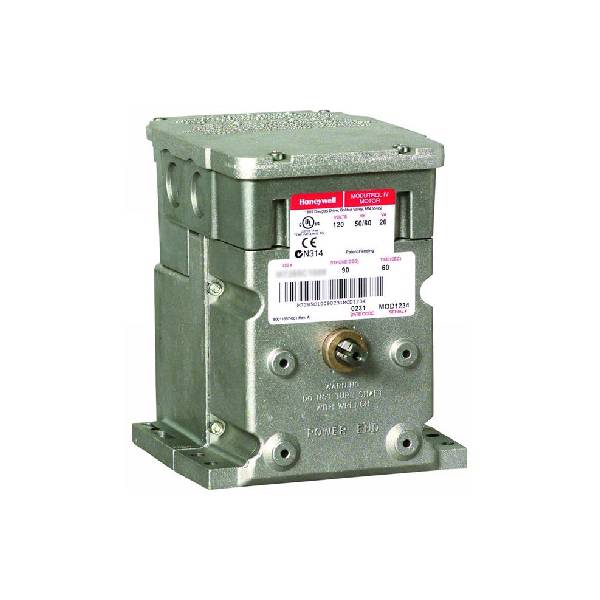

M7284A1012/U Honeywell Modutrol Motor

Available on order

54,344.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model no. M7284A1012/U
Application Type Electric
Dimensions, Approximate 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in.
deep (164 mm high x 140 mm wide x 185 mm deep)
Frequency 50 Hz; 60 Hz
Auxiliary Switch Ratings AFL – 120 Vac 7.2A
Auxiliary Switch Ratings ALR – 120 Vac 43.2A

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

M7284A1012/U Honeywell Modutrol Motor

• Integral spring return returns motor to normal position
in the event of power failure on spring return models
• Integral junction box provides NEMA 3 weather protection
if motor is mounted in the upright position
• Motor and circuitry operate from 24 Vac
• Quick-connect terminals are standard–screw terminal adapter is available
• Adapter bracket for matching shaft height of older motors is available
• Motors have field adjustable stroke (90 to 160 degrees)
• Integral auxiliary switches are available factory mounted,
or can be field added
• Spring return motors can operate valve linkages from power end or
auxiliary end shafts for normally closed or normally open valve applications
• All models have dual shafts (slotted and tapped on both ends)
• All models have auxiliary switch cams
• Fixed torque throughout the entire voltage range
• Motors are designed for either normally open or
normally closed valves and dampers
• Models available with adjustable start (zero) and span
• Models available with 4 to 20 mA input signal
• Models available with 2 to 10 Vdc input signal
• Die-cast aluminum housing
