Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model | LCZ260-30 |
| Supply voltage | 26Vdc |
| Supply current | 20mA |
| Reverse polarity | 30Vdc |
| Output sinking | 20mA |
| Voltage low | 0.4V |
| Voltage high | 30Vdc |
| Duty cycle | 80% |
| Operating frequency | 15000 Hz |
| Output signal rise/fall time | 4.0µs |
| Dielectric strength | 200Vac |
| Output impedance | 5.3kOhm |
| Operating temperature range | 125 [257]°C [°F] |
| Storage temperature | 125 [257]°C [°F] |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

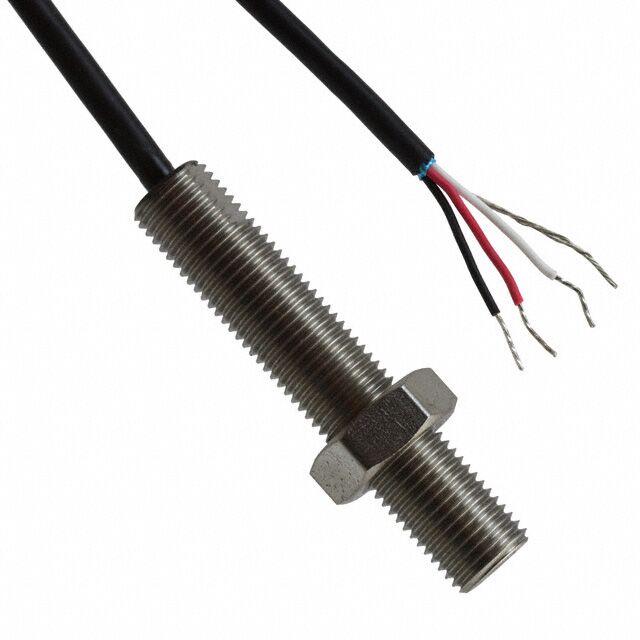

LCZ260-30 Hall-Effect Zero Speed Sensor
The LCZ Series Hall-effect Zero Speed Sensors provide a durable, cost-effective solution in most harsh environments. The sensor is available in 9,5 mm [3/8 in/0.375 in] and 15,9 mm [5/8 in/0.625 in] diameters, in both 50,8 mm [2.00 in] and 76,2 mm [3.00 in] lengths.
The stainless steel package is simple to install and adjust. It does not require rotational orientation.
