Name: KP35 Danfoss Pressure Switch
SKU: 66120
Price: 1050.00 INR
Availability: OutOfStock

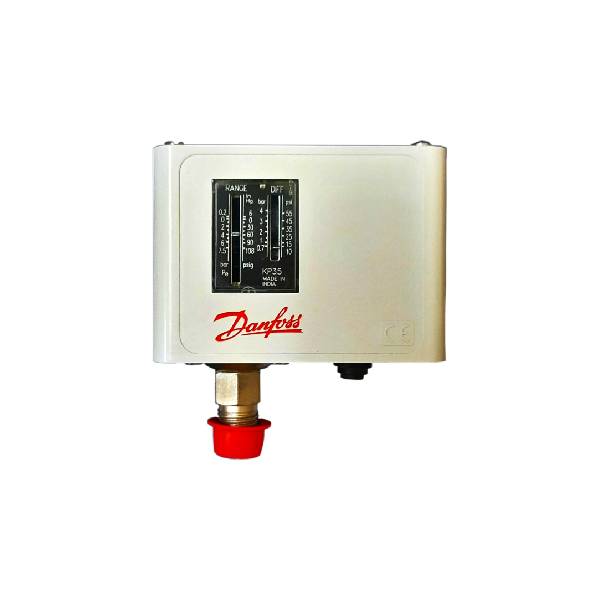

KP35 Danfoss Pressure Switch

Available on order

₹1,050.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Danfoss
Model No.	KP35
Ambient temperature [°C]	-40 – 65 °C (for max. 2 hours up to 80 °C)
Media temperature [°C]	-40 – 100 °C
Fluid	Gaseous media
Contact system	Single-pole double throw (SPDT)
Enclosure, IP30 grade	Unit must be mounted on a flat surface / a flat fitting and all unused holes covered
Enclosure, IP44 grade	Mounted as IP30 plus fitting of top cover, code no. 060-109766
Enclosure, IP55 grade	Unit mounted in a special IP55 enclosure, code no. 060-033066 or 060-062866
Mounted on back plate / wall bracket	Vibration proof in the range 0 – 1000 Hz, 4 g [1g = 9.81 m/s2 ]
Mounted on angle bracket	Not recommended in areas where vibrations occur

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

KP35 Danfoss Pressure Switch

The KP and KPI pressure switches and thermostats are used for control, monitoring and alarm systems in a wide variety of industry
applications. KP pressure switches are mainly used for gaseous fluid whereas KPI pressure switches are more for liquid and gaseous fluid.
The KP pressure range include special designed pressure switches and limiters for steam boilers and other heating applications. For water pump control and protection (dry run) the dual pressure switch KP44 is suitable and secure improved life time of the water pump.
