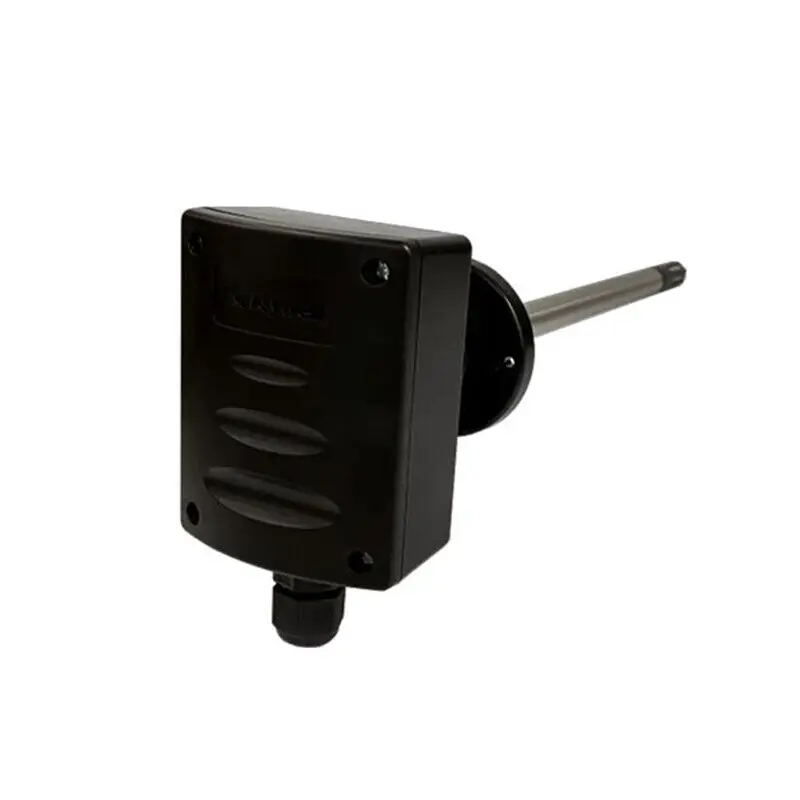

HSH-DM5B Honeywell Duct Temp. & Relative Humidity Sensors

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	HSH-DM5B
Measuring Temp. Range	-40 ~ 60 ℃
Working Environment	-40~60℃, 0~95%RH (Non condensation)
Humidity Accuracy @ 25℃ and 24VDC	2%: 20~80%：±2%； 0-95%：±3% 3%: 20~80%：±3%；0-95%：±5% 5%: 20~80%：±5%； 0-95%：±9%
Power Supply	0-10V: 24 VDC/24VAC±20% 4-20mA: 24 VDC ±20%
IP Rated	IP65
Wire conduct Diameter	0.33~1.65mm2
Storage Temp.	-40 ~ 70 ℃
Housing Material	PC（Fire rating：UL94-V0)
Certification	EN IEC 61000-6-3:2021, EN IEC 61000-6-2:2019 EN IEC 60730-1:2016+A1, EN IEC 60730-2-9:2019+A1
RH Output	4~20mA
RH accuracy	5%
Temp. Output	Resistance Value
Temp. sensor element type	20K NTC
Temp. Accuracy*	0.3K @ 25℃
Installation position	Duct type

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

HSH-DM5B Honeywell Duct Temp. & Relative Humidity Sensors

The Honeywell HSH-D series offers advanced sensors designed specifically for measuring the temperature and relative humidity of air within HVAC ducts. These sensors play a crucial role in maintaining optimal conditions for indoor environments. With their diverse range of control signal outputs, the HSH-D series sensors are highly versatile and can seamlessly integrate with various automatic control systems.

The primary function of these sensors is to accurately measure the temperature and relative humidity of air flowing through HVAC ducts. This information is vital for effective HVAC system operation, ensuring that the air conditioning and ventilation systems maintain comfortable and healthy indoor conditions. By continuously monitoring these parameters, the sensors enable precise control over the environmental conditions within a building.

One of the standout features of the HSH-D series is its compatibility with a wide array of control signal outputs. This ensures that the sensors can seamlessly interface with different types of automatic control systems commonly found in HVAC installations. Whether it’s a direct analog output, digital communication protocols, or wireless connectivity, the HSH-D series sensors can adapt to the specific requirements of the control system in use.

The versatility of the HSH-D series sensors makes them suitable for various applications across different industries. From residential and commercial buildings to industrial facilities, these sensors provide reliable and accurate data for efficient HVAC system operation. By integrating the HSH-D series sensors into their control systems, building managers and HVAC professionals can benefit from enhanced automation and better energy management.

In conclusion, the Honeywell HSH-D series duct temperature and relative humidity sensors offer precise measurements and compatibility with a wide range of control signal outputs. These sensors contribute to maintaining comfortable and healthy indoor environments by providing essential data for effective HVAC system operation. With their adaptability and reliability, the HSH-D series sensors are a valuable asset for building automation and energy management in various applications.
