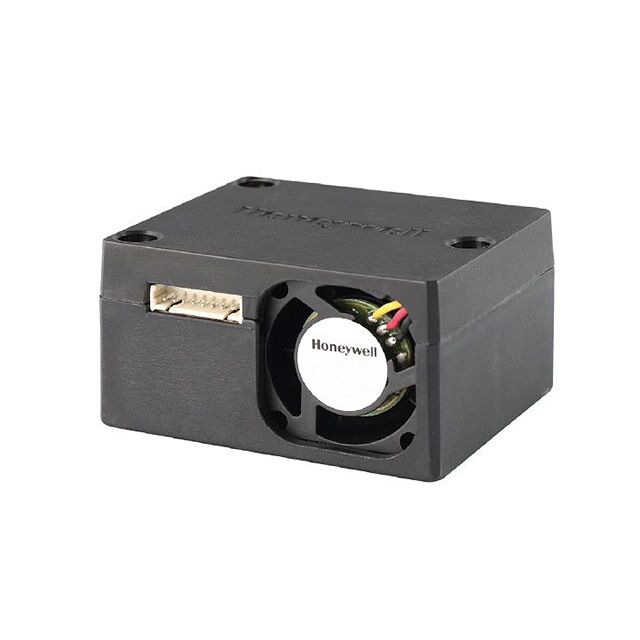

HPMA115S0-XXX Honeywell Air Quality Sensor

Product Details:

Product	Description
Brand	Honeywell
Model No.	HPMA115S0-XXX
Operating principle	laser scattering
Detection	PM1.0, PM2.5, PM4.0, PM10
Output data	PM1.0 in µg/m3, PM2.5 in µg/m3, PM4.0 in µg/m3, PM10 in µg/m3
Concentration range	0 µg/m3 to 1,000 µg/m3
Accuracy (at 25°C ±5°C): 0 µg/m3 to 100 µg/m3 100 µg/m3 to 1000 µg/m3	PM2.5: ±15µg/m3; PM1.0, PM4.0, PM10: ±25 µg/m3 PM2.5: ±15 %; PM1.0, PM4.0, PM10: ±25%;
Response time	<6 s
Supply voltage	5 V ±0.2 V
Switching frequency max	100 kHz
Ripple amplitude max	20 mV
R.M.S noise max	1 mV (noise bandwidth 10 MHz)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

HPMA115S0-XXX Honeywell Air Quality Sensor

The Honeywell HPM Series Particulate Matter Sensor is a laser-based sensor which detects and counts particles using light scattering. The detection concentration range is 0 µg/m3 to 1,000 µg/m3. A laser light source illuminates a particle as it is pulled through the detection chamber. As particles pass through the laser beam, the light reflects off the particles and is recorded on the photo or light detector. The light is then analyzed and converted to an electrical signal to calculate particle concentration. The Honeywell particle sensor provides information on the particle concentration for given particle concentration range.
