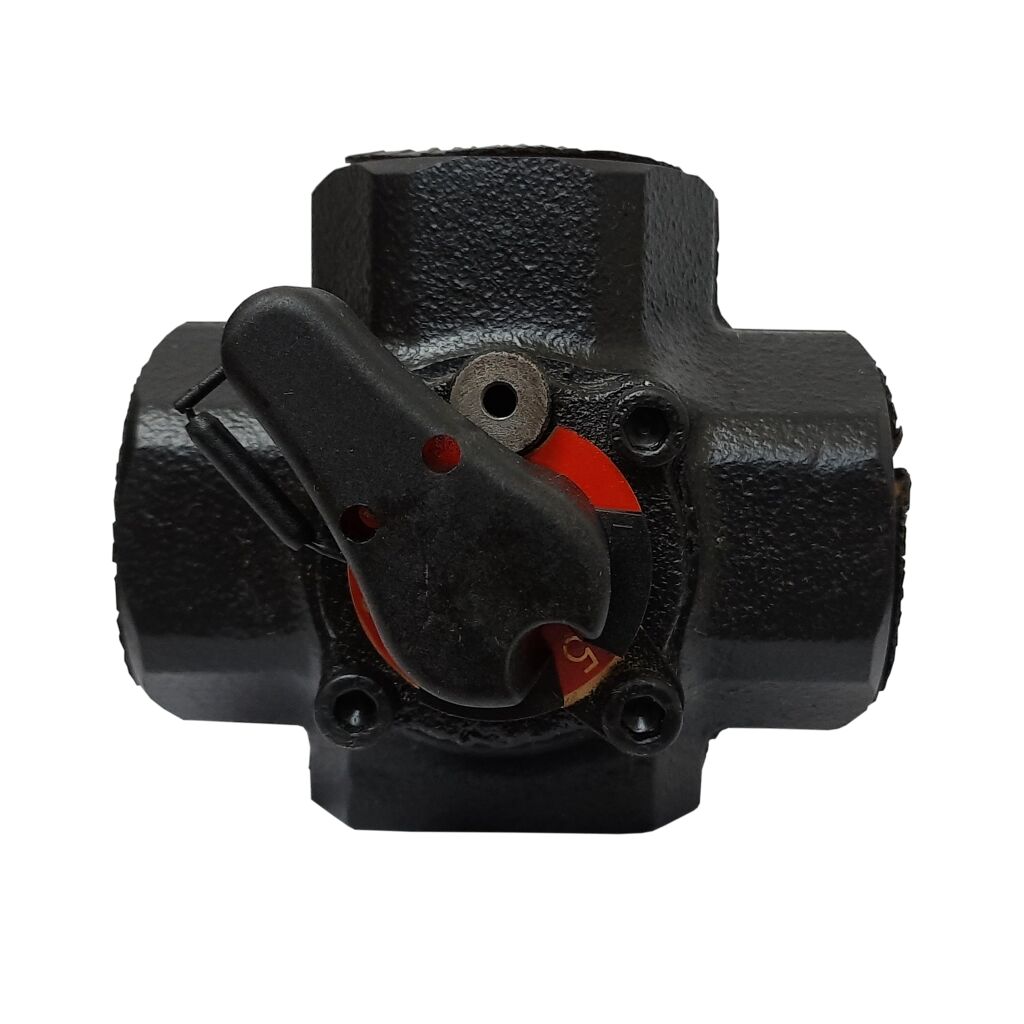

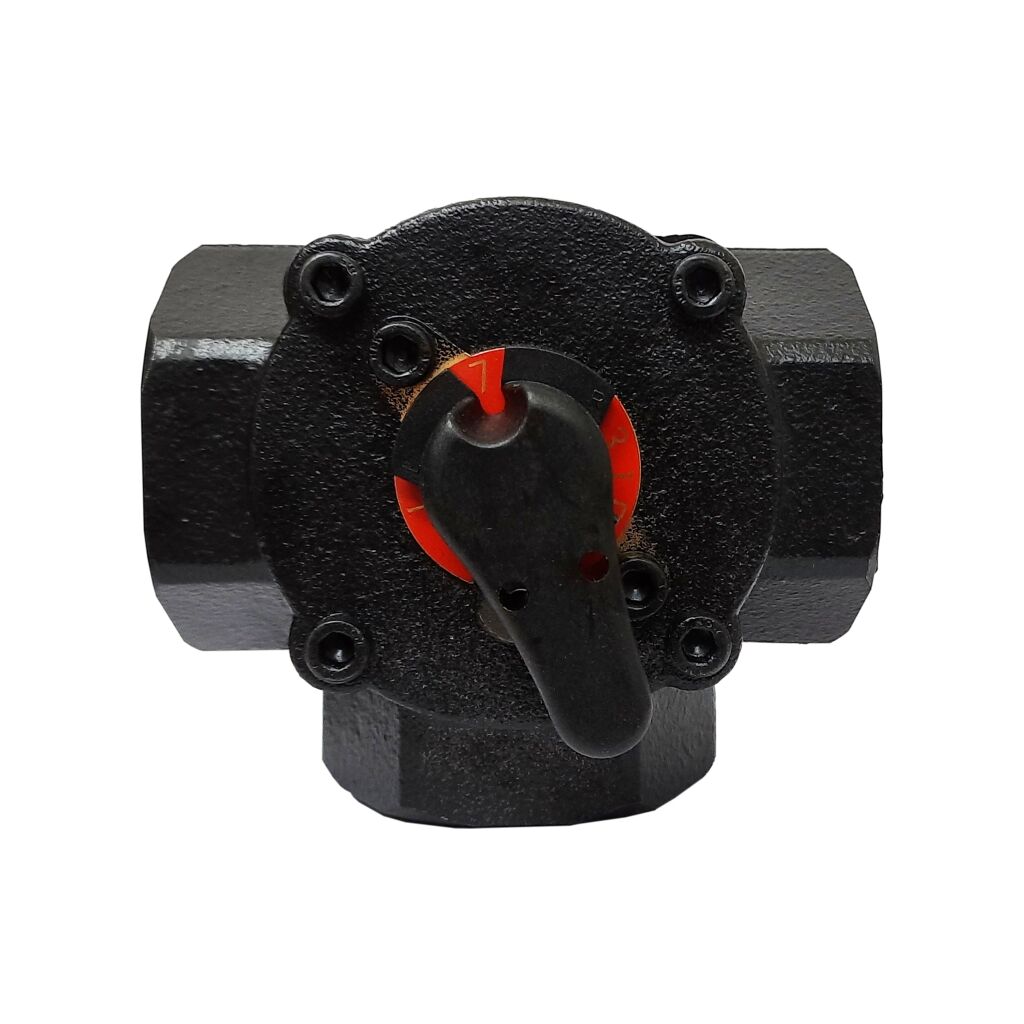

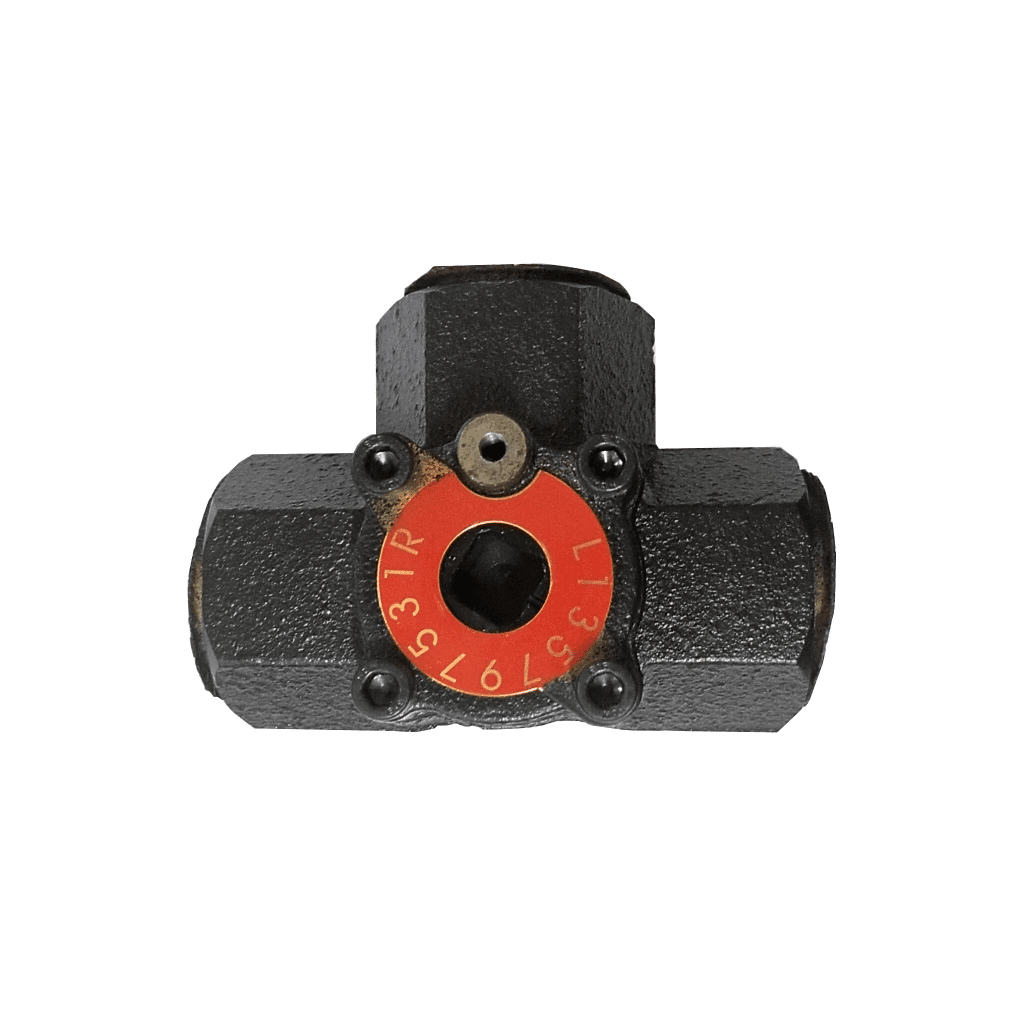

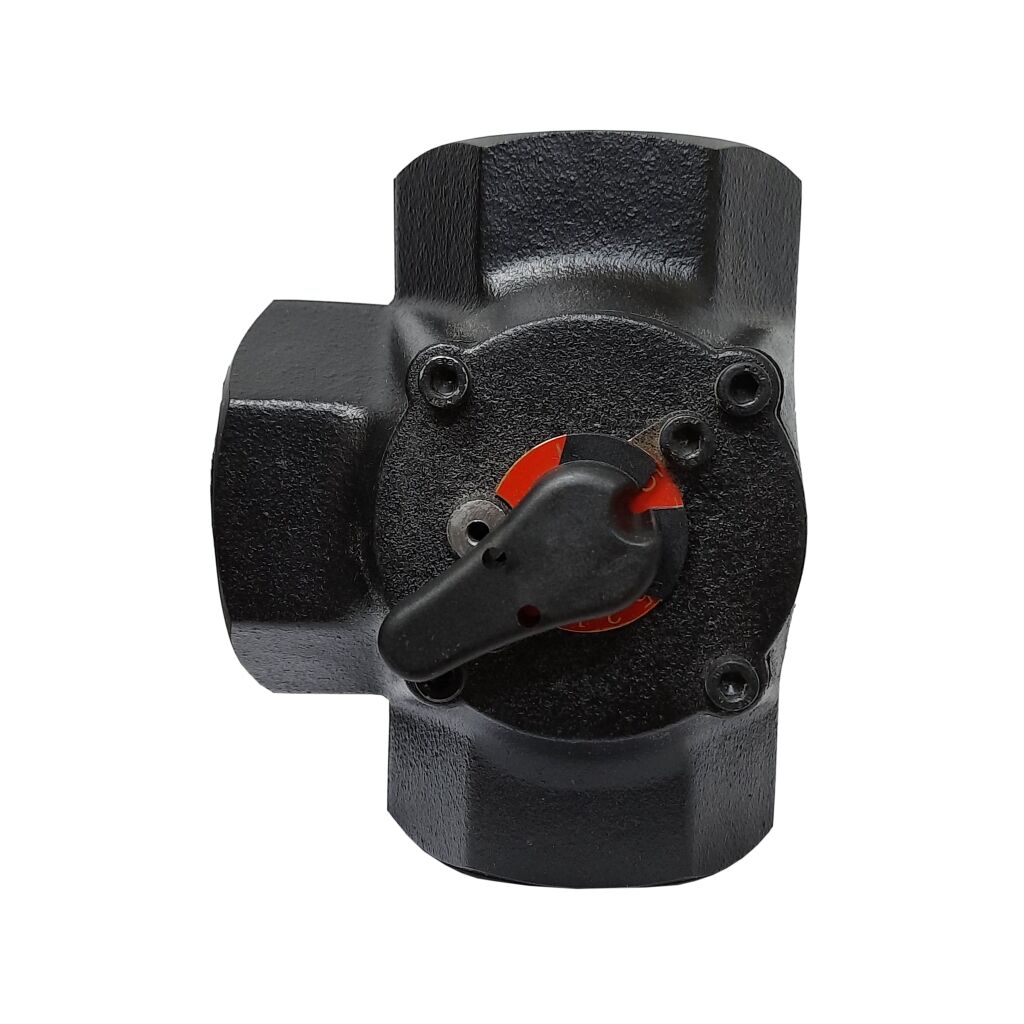

Honeywell 3-Way Rotary Valve (V5433A PN6)

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	V5433A Series
Size	DN20- DN80
Leakage rate	< 1% of kVS
< 1% of kVS	Internal threads
Angle of rotation	90°
Packing	Double O-ring sealing
Material body	Cast iron
Material inner parts	Chrome-plated cast iron
Medium	Heating water according to VDI 2035 (oxygen concentration < 0.2 g/m3, pH 8…9.5)
Water temperatures in the valve	2 to 110 °C, non-condensing
Flow characteristic	equal percentage
Suitable Actuators	M6063L1009 (230/240 Vac; floating) M6063L4003 (230/240 Vac; floating) auxiliary switch M6063A1003 (24 Vac; floating) M6063A4007 (24 Vac; floating) auxiliary switch
Nominal static pressure	600 kPa (6 bar)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The V5433A Honeywell Rotary Valve V5433A 3-way rotary valve was designed especially for accurate control of supply water temperature in heating & air conditioning systems. When used in combination with the M6063 actuator, its sturdy construction ensures a long and reliable operating life.

The Honeywell Rotary Valve v5433 controls mixing water temperature with a rotating plug. The plug adjusts the water flow of two inputs with two control curves. The required flow water temperature is reached by adding a proportion of return water to the boiler hot water. The V5433A features special control characteristics for optimum control performance.

Features

• Chrome-plated plug for long life span
• Optimized characteristics for supply water temperature control
• Reliable mounting for electrical actuators
• Wide range of flow rates
• Compact design

V5433A PN6
