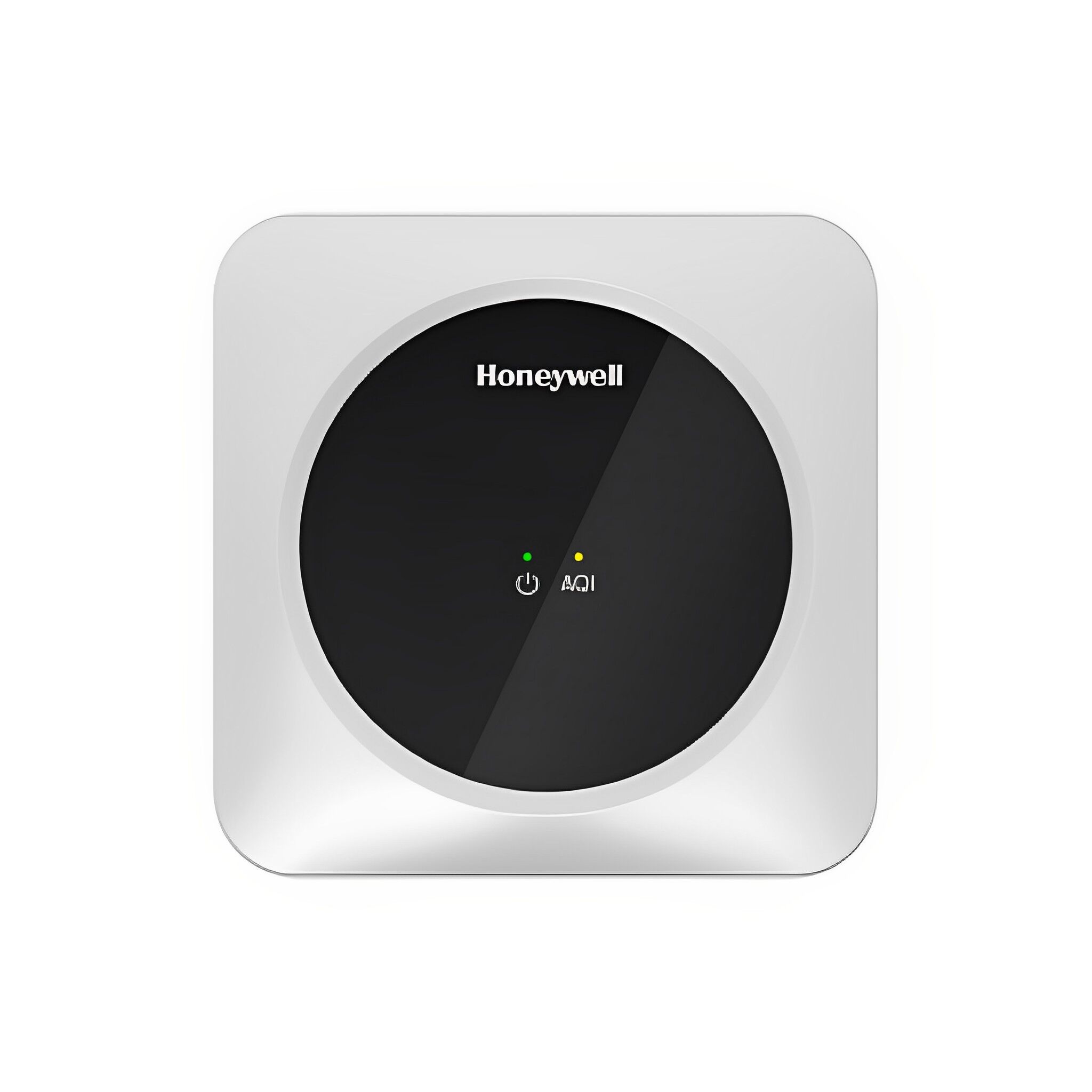

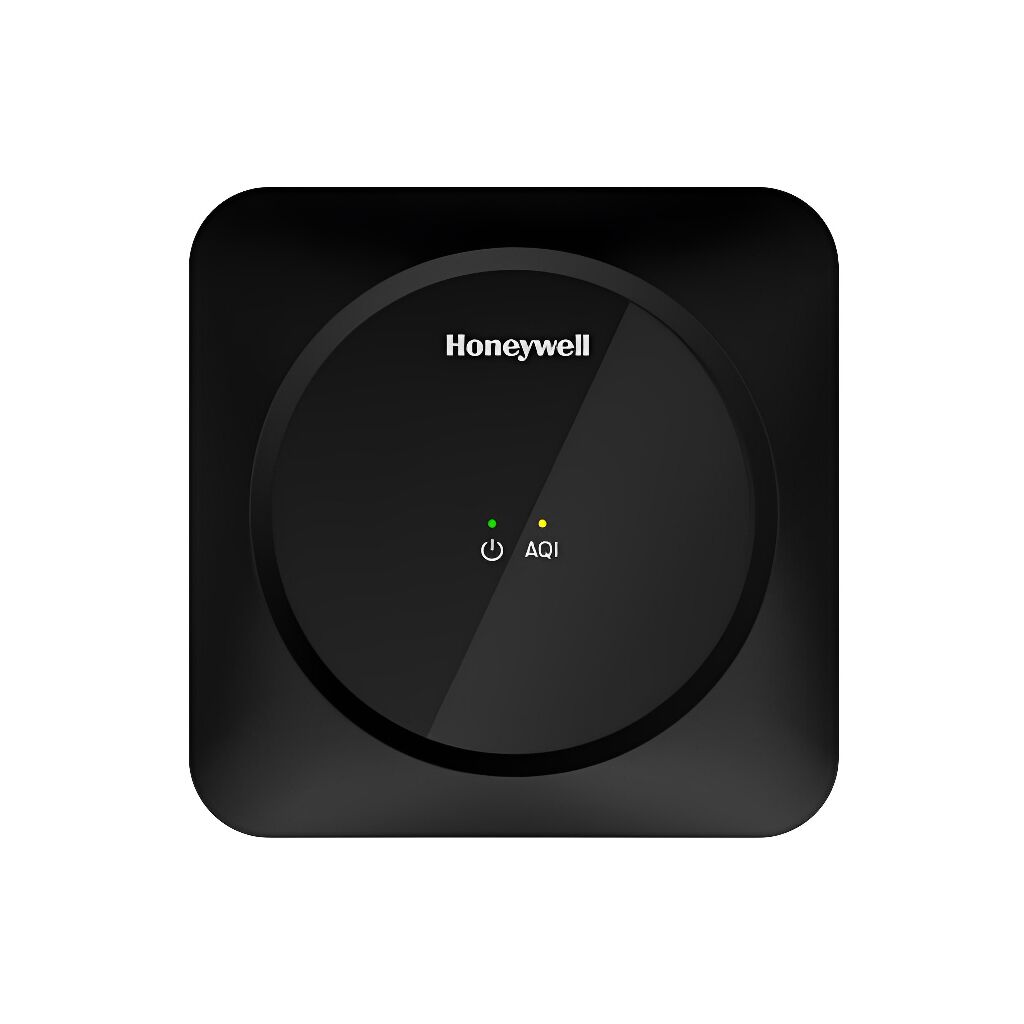

HN200MH1W0 Honeywell Indoor Air Quality Monitor

Available on order

40,000.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Feature Parameter
Brand Honeywell
Model Number HN200MH1W0
Display No Display
Combination Temp, RH, PM2.5, TVOC, CO₂
Communication MODBUS; RS-485
Certificate  RoHS
Power Adaptor Yes
Colour White
IAQ Monitor Power Supply 12 VDC
Operating temperature 0 to 70 °C
Humidity 0 to 90% Rh. (Non-condensing

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

HN200MH1W0

Description

Honeywell Air Quality Monitor is advanced with modular architecture design and configured with a comprehensive array of multi-sensors to measure various air quality parameters viz. Particulate Matter (PM2.5 and PM10), Carbon Dioxide (CO2), Total Volatile Organic Compound (TVOC), Temperature (T), and Relative humidity (Rh) in a single device.

The indoor air quality monitor uses an ‘active suction method’, draws ‘air sample’ which enables laminar flow across the array of sensors for better accuracy. The device is BMS Compatible via RS-485 port using MODBUS protocol.

Honeywell Air Quality Monitor is pre-configurable with optional sensors viz. Formaldehyde (HCHO), Ozone (O3)*, NOx*, and SOx* apart from the standard configuration.

It is suitable for intelligent buildings and systems, air quality data collection systems, green building evaluation systems, and ventilation systems.



FEATURES AND BENEFITS

  • Wide array of configurable hi-accuracy sensors
  • Modular architecture: ‘5+2’ for optional configuration
  • Active sampling with ‘Maglev’ fan for climate and gas sensor
  • Advanced Honeywell particulate sensor. laser-based light scattering particle sensing
  • Large 3.5” TFT touchscreen for clear visual indication
  • AQI parameter display on screen
  • BMS compatible
