Description

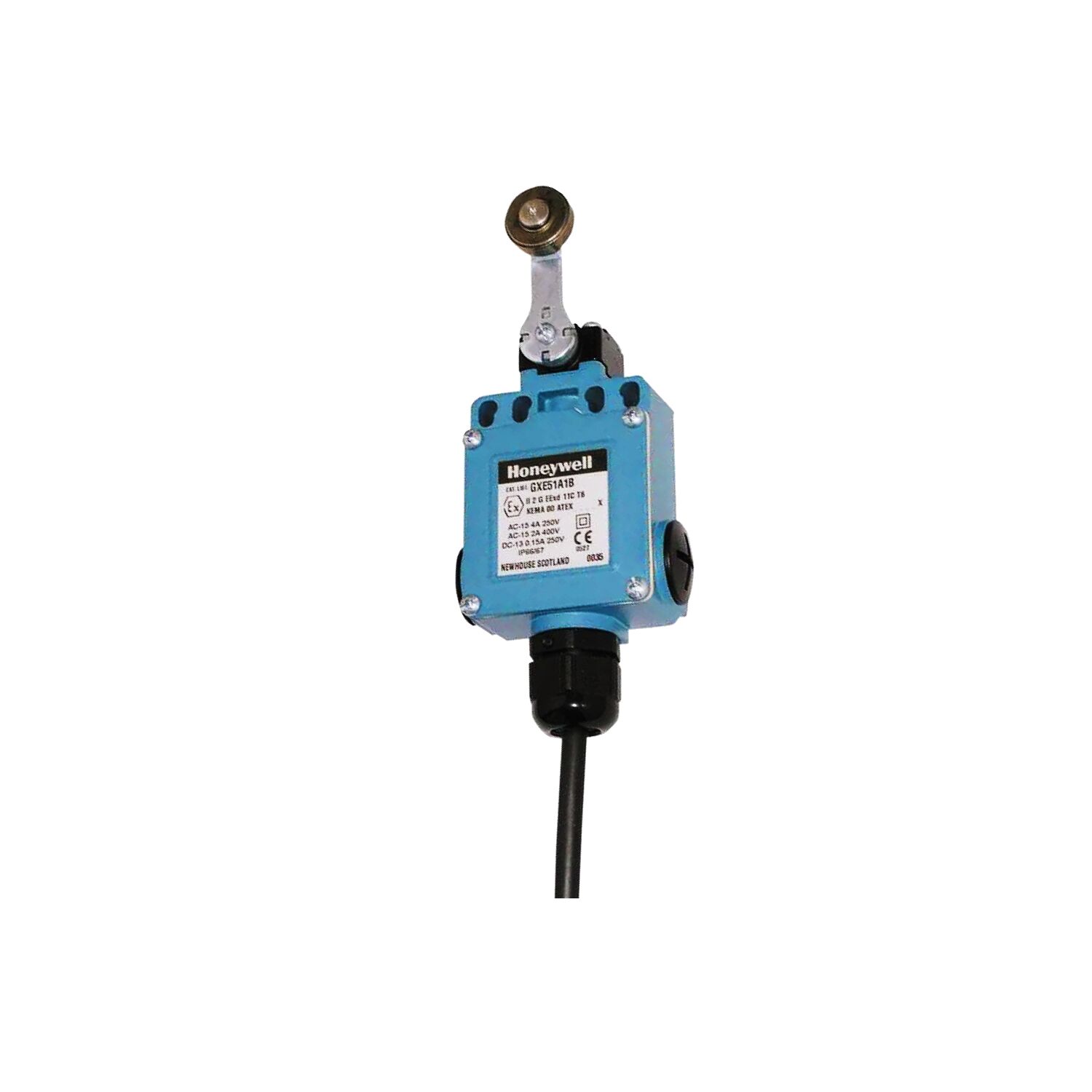

GXE51A1B Honeywell Limit Switch is flame-proof limit switch is designed specifically for use in hazardous applications. The GXS enclosure is epoxy sealed and has an environmental protection of IP66 as per IEC/EN 60529. The entire GXS Series complies with the European Directive on Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres (2014/34/EU) commonly referred to as the ATEX Directive.
FEATURES of Honeywell GXE51A1B Limit Switch
- II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T85°C Db
- KEMA 00 ATEX 2103 X, IEC Ex KEM 10.0039X
- Conforms to EN IEC 60079-0, EN 60079-1 and EN 60079-31
- CE marked
- EN50041 mounting compatible
- EN50047 mounting compatible
- Rugged zinc die-cast housing with epoxy coating
- Pre-wired, 5 m of cable
- Bottom exit cable ONLY
- Double insulated switch element with snap-action basic switch
POTENTIAL APPLICATIONS
- Hazardous areas Category 2 (Zones 1 & 21) or Category 3 (Zones 2 & 22)
- Petrochemical
- Material Handling
- Valves
