Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | GXA51A2B |
| Mechanical life | up to 2 million operations |
| Degree of protection | IP66, EN 60529 |
| Operating temperature @ 3 A | -20°C to 75°C [-4°F to 167°F] |
| Operating temperature @ 4 A | -20°C to 60°C [-4°F to 140°F] |
| Standards/approvals | EN IEC 60079-0, EN 60079-1, EN 60079-31 II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T85°C Db KEMA 00 ATEX 2103 X; IEC Ex KEM10.0039X (X indicates special conditions for safe use, see certificates for details) |
| Electrical rating | AC15, DC13 1NC/1NO change over contacts Double insulated switch element No internal or external earth connection |
| Contact material | silver |
| Cable/body | Harmonised Cenelec cable, HO5VV-F, 3-core x 0,75 mm2 Black (BK) – common Grey (GY) – NC Brown (BN) – NO Epoxy-sealed cable and body |
| Shock | 50 g, IEC 60068-2-27 |
| Vibration | 10 g, IEC 60068-2-6 |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

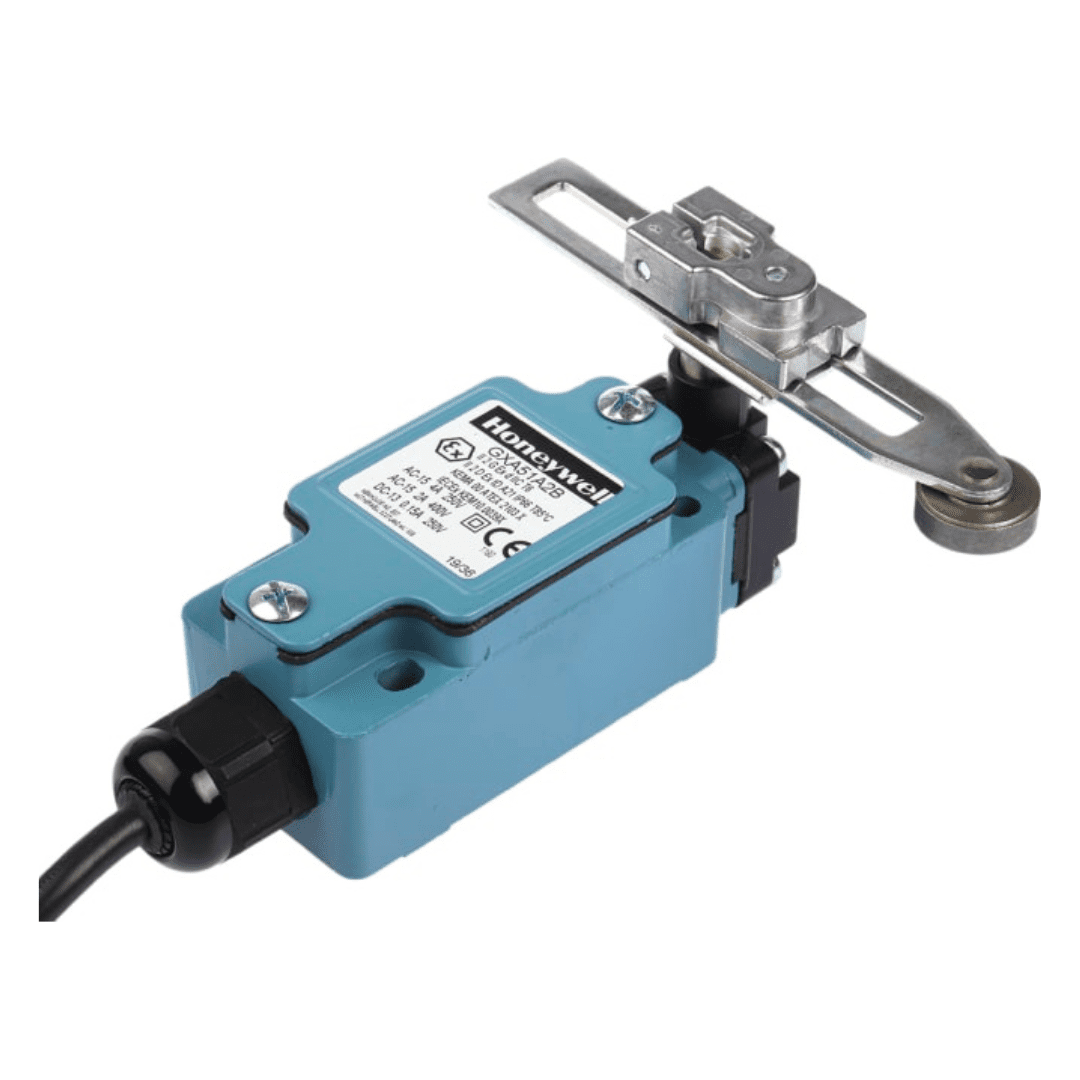

GXA51A2B Honeywell Limit Switch
The GXS Series flame-proof limit switches are designed specifically for use in hazardous applications. The GXS enclosure is epoxy sealed and has an environmental protection of IP66 as per IEC/EN 60529. The entire GXS Series complies with the European Directive on Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres (2014/34/EU) commonly referred to as the ATEX Directive.
