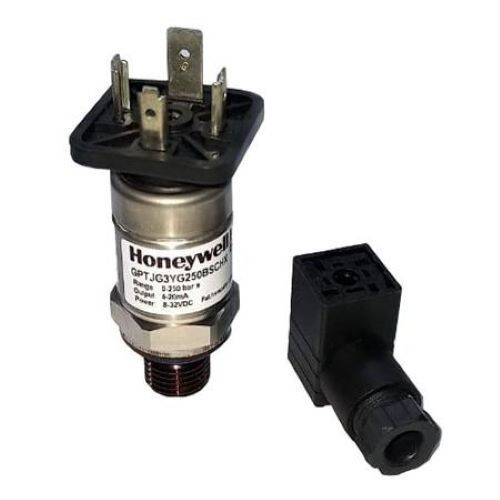

Name: GPTJG3YG250BSCHX Honeywell Pressure Transmitter
SKU: 59610
Price: 3250.00 INR
Availability: InStock

GPTJG3YG250BSCHX Honeywell Pressure Transmitter

₹3,250.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	GPTJG3YG250BSCHX
Operating temperature range	-25 ºC to 85 ºC
Storage temperature range	-40 ºC to 125ºC
Compensated temperature range	0 ºC to 70ºC
Accuracy	±0.5%FSS
Total Error Band	±2%FSS over 0 ºC to 70ºC
Response time	<2 ms (10% to 90% step change in pressure)
Turn on time	<7 ms
Electrostatic discharge	±4 kV contact, ±8 kV air per IEC 61000-4-2
Radiated immunity	> 100V/m (200 to 2500 MHz) per ISO 11452-2
Dielectric strength	750 Vac, 1 min.
Life	5 million cycles minimum to 90% full scale pressure (<=25MPa) 1 million cycles minimum to 90% full scale pressure (>25MPa)
Vibration	20 G sweep, 10 Hz to 2000 Hz
Shock	100 G per MIL-STD-202G, Method 213B, Cond. C
Humidity	0 %RH to 95 %RH, non-condensing
Wetted materials	Port: SS316L; Diaphragm: SS316L; Gasket: NBR
External materials housing connector	304 stainless steel PBT 30% GF
Connector	DIN EN 175301-803A
Port Type	G1/4 ISO 1179-2
Snubber	with snubber
Pressure Range	200bar ; 020G = 20MPa
Pressure Reference	Sealed Gage
Output Transfer Function	Current 4 to 20 mA
Electrical Connection	Stand Pin out
Output	4-20mA
Supply Voltage	8-32Vdc
Over and reverse Voltage	±36 Vdc

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

GPTJG3YG250BSCHX Honeywell Pressure Transmitter, Honeywell’s GPT Series Pressure Transducers use piezoresistive sensing technology with ASIC (Application Specific Integrated Circuit) signal conditioning in a stainless steel housing with electrical connector. The GPT Series are fully calibrated including temperature compensation from 0º C to 70ºC.

Features:-

• Fully media isolated
• Pressure range: 5MPa to 35MPa (absolute and sealed gage)
• Output: 0-10 Vdc, 1 to 6Vdc , 4-20mA or 0.5Vdc to 4.5Vdc
• Fully calibrated and temperature compensated
• Total Error Band: ±2.0 %FSS from 0 °C to 70 °C
• Insulation resistance: >100 Mohm, 500 Vdc
• Dielectric strength: 750 Vac, 1 min.
• EMC: Heavy Industrial Level
• Ingress protection up to IP67
• Response time: <2 ms
• RoHS, REACH, and CE compliant

POTENTIAL APPLICATIONS

• Industrial: Machine Tools, Rubber and Plastic Machinery
• Transportation: Construction Machinery, Agriculture Machinery
