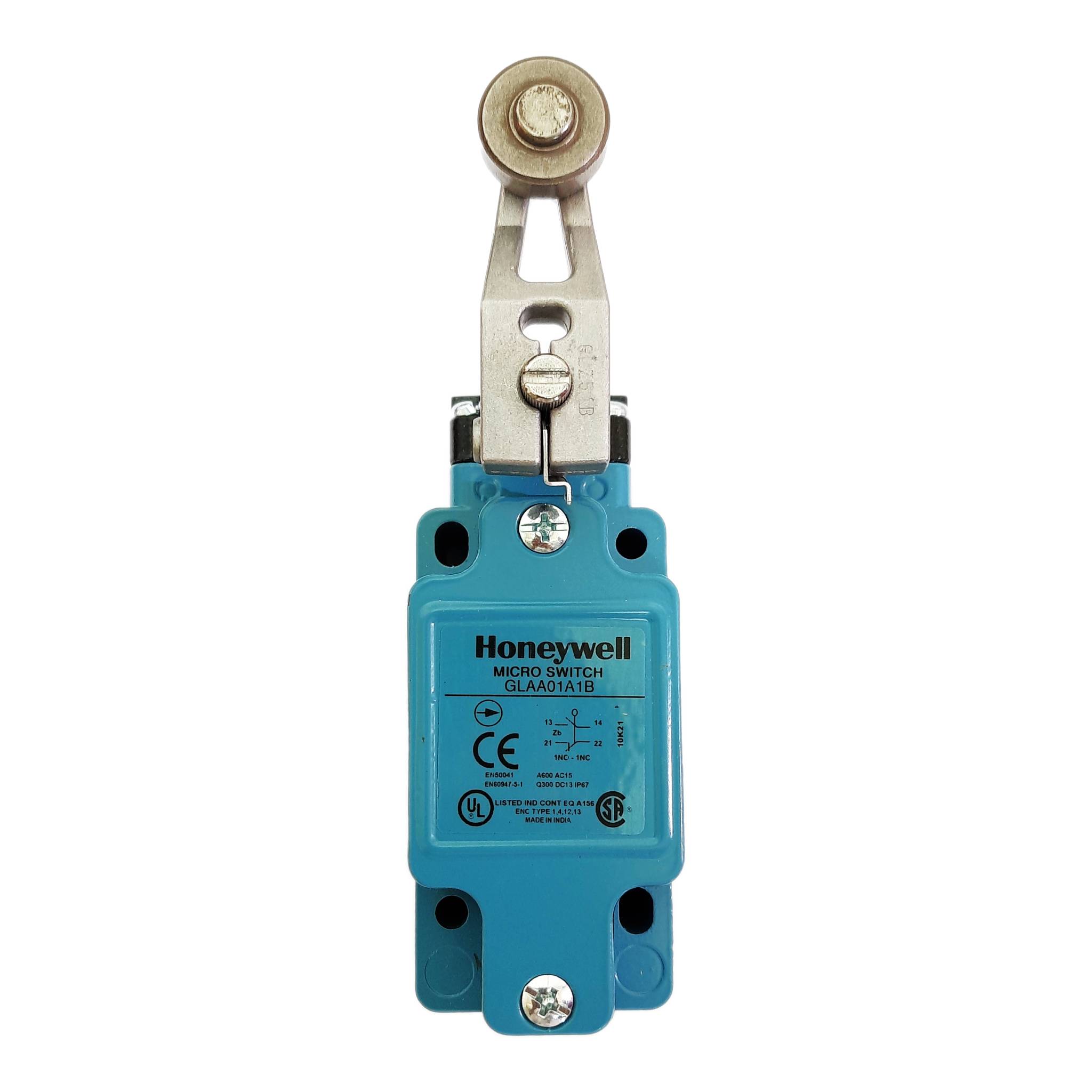

Name: GLAA01A1B Honeywell Limit Switch
SKU: 60530
Price: 3055.00 INR
Availability: InStock

GLAA01A1B Honeywell Limit Switch

₹3,055.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	GLAA01A1B
Certifications	CE, CCC1, CSA, UL
Housing material	Electrostatic epoxy coated zinc
Contact material	Silver alloy (standard), gold-plated (low-energy applications)
Rated operational voltage (Ue)	240 Vac, 600 Vac, 250 Vdc
Rated operational current (Ie)	3 A, 1.2 A, 0.27 A
Thermal current (Ith)	10 A, 2.5 A
Rated insulation voltage (Ui)	300 V; 600 V
Pollution degree	3
Sealing	IP67; NEMA/UL 1, 4, 12, and 13
Operating temperature	-40 °C to 85 °C [-40 °C to 185 °F] side rotary actuator -25 °C to 85 °C [-13 °F to 185 °F] other actuators
Mechanical life	Up to 15 million operations
Vibration	10 g conforming to IEC 68-2-6; railway application per IEC 61373 Class I Car B type
Shock	50 g conforming to IEC 68-2-27; railway application per IEC 61373 Class I Car B type
Body Style	Non plug-in
Conduit	0.5-14 NPT
Basic Switch	1NC/1NO, SPDT snap action
Head	Side rotary
Lever	38 mm fixed, 19 x 6 steel roller

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Description :-

GLAA01A1B Honeywell Limit Switch Series is designed to global EN50041 standards and well suited for worldwide applications. Honeywell modular design (heads/actuators, bodies, and contact blocks) of the limit switch allows for rapid response to meet customer applications. The rugged die-cast metal housing of the switch is ideal for indoor and outdoor applicationsc where a degree of IP or NEMA enclosure sealing is required. Honeywell Limit Switch Normally closed snap-action contacts and normally closed slowaction contacts are positive opening.

FEATURES
• Designed to EN50041 standard, 30 mm x 60 mm mounting
• Available as a standard body or plug-in body with same footprint
• Wide range of actuator heads andevers
• Side rotary switches factory set for CW and CCW actuation; field adjustable for CW only or CCW only
• Certified for global applications; UL/ CSA (Americas/Canada), CE (Europe), CCC (Asia-Pacific)1
• Conforms to IEC/EN 60947-5-1, EN 45545-2 (GLA/GLF Series), and EN 61373 (GLA)
• Sealed to IP67 and NEMA/UL 1, 4, 12, and 13
• Operating temperatures as low as -40 °C to 85 °C [-40 °F to 185 °F]
• Multiple connectivity options to meet most applications: four different threaded conduits, micro-change connectors, mini-change connectors, Deutsch style 4-pin connector
• One or two LED indicators available in switch body
• Single pole double throw, two pole single throw contact blocks (1NC/1NO, 2NC, 2NO) are galvanically (electrically) isolated (Zb) and designed with bifurcated contacts
• Two pole double throw contact block (2NC/2NO) has each pole galvanically (electrically) isolated (Zb)
• Normally closed contacts are positive opening , except center neutral style
• Contact blocks are available as snap action or slow action
• Analog output available with side rotary actuator
• Mechanical life up to 15 million operations

Value to Customers :-

• Easy to install and maintain
• Rugged metal construction

Potential Applications :-

• Aerial lifts, boom lifts
• Automotive assembly lines and
machining centers
• Agriculture equipment
• Conveyors
• Doors and apertures
• Material handling
• Machine tools
• Railroad locomotives and railroad
signaling equipment
• Transportation hubs
• Valves
