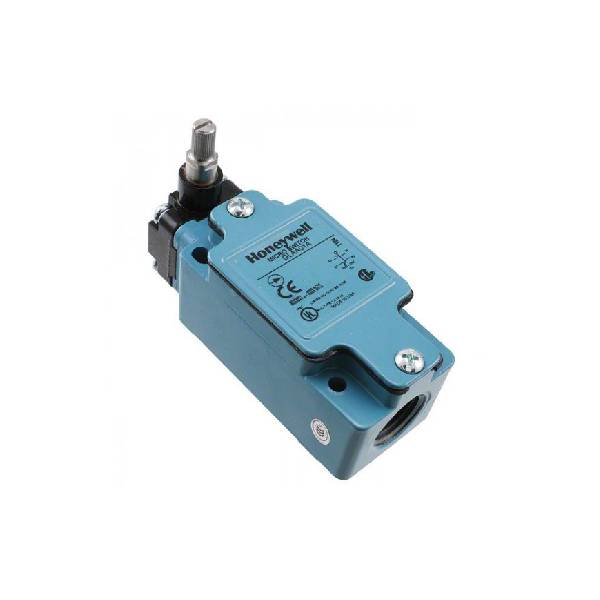

GLAA01A Honeywell Limit Switch

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	GLAA01A
Certifications	CE, CCC1, CSA, UL
Housing material	Electrostatic epoxy coated zinc
Contact material	Silver alloy (standard), gold-plated (low-energy applications)
Rated operational voltage (Ue)	240 Vac, 600 Vac, 250 Vdc
Rated operational current (Ie)	3 A, 1.2 A, 0.27 A
Thermal current (Ith)	10 A, 2.5 A
Rated insulation voltage (Ui)	300 V; 600 V
Pollution degree	3
Sealing	IP67; NEMA/UL 1, 4, 12, and 13
Operating temperature	-40 °C to 85 °C [-40 °C to 185 °F] side rotary actuator -25 °C to 85 °C [-13 °F to 185 °F] other actuators
Mechanical life	Up to 15 million operations
Vibration	10 g conforming to IEC 68-2-6
Shock	50 g conforming to IEC 68-2-27
Body Style	Non plug-in
Conduit	0.5-14 NPT
Basic Switch	1NC/1NO, SPDT snap action
Head	Side rotary

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Honeywell’s MICRO SWITCH GLA Limit Switch Series is designed to global EN50041 standards and well suited for worldwide applications. The modular design (heads/actuators, bodies, and contact blocks) of the limit switch allows for rapid response to meet customer applications. The rugged die-cast metal housing of the switch is ideal for indoor and outdoor applications where a degree
of IP or NEMA enclosure sealing is required. Normally closed snap-action contacts and normally closed slow action contacts are positive opening.
