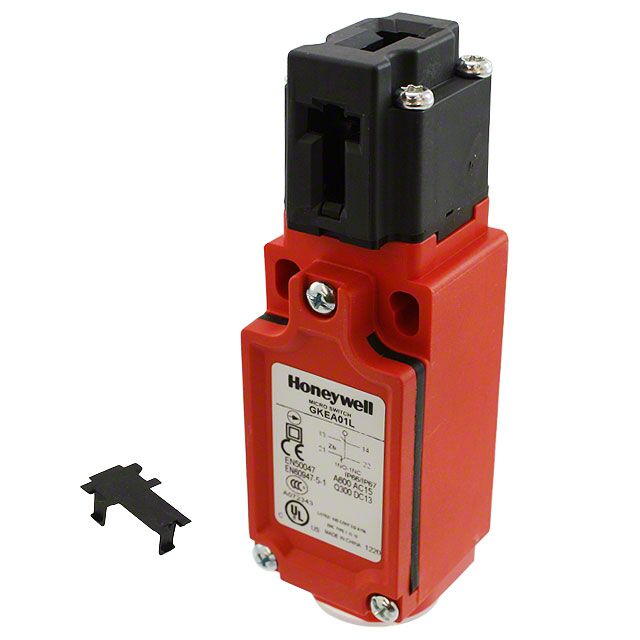

GKEA01L Honeywell Safety Switch

Product Details:

Product Description
Brand Honeywell
Model No.
GKEA01L
Agency certifications CE, DOC A340
cULus, File E37138
CCC, Certificate # 2011010305489827
SIL, Reference SIRA FSP 09009/02
Housing material Glass-filled thermoplastic polyester
Actuator key material Stainless steel
Electrical connection 20 mm or 0.5-14 NPT conduit with each wiring point in switch a threaded terminal screw
Contact/switch options 1NC/1NO slow action BBM, 1NC/1NO snap action, 2NC slow action
Contact design Double break, electrically separated (Zb)
Contact material Silver alloy
Electrical ratings See table 2
Utilization category 1NC/1NO: AC-15, A600; DC13-Q300
2NC: AC-15, A300; DC13-Q300
Rated operational voltage
(Ue)		 1NC/1NO: 120 Vac, 240 Vac, 600 Vac, 125 Vdc, 250 Vdc
2NC: 120 Vac, 240 Vac, 125 Vdc, 250 Vdc

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Category: Tags:

Description

GKEA01L Honeywell Safety Switch

The Honeywell GKE Series key-operated safety interlocking limit switches are designed for machine guarding applications. The switches mount on the EN50047 mounting pattern of the 20 mm to 22mm mounting centers. The compact size is preferred where there is limited space on machinery. The double-insulated plastic housing and rugged stainless steel actuator key is a logical choice for demanding environments. The design of the switch allows the actuator key to be inserted from the top or side of the switch. As with the Honeywell safety limit switches, all normally closed contacts are positive opening.
