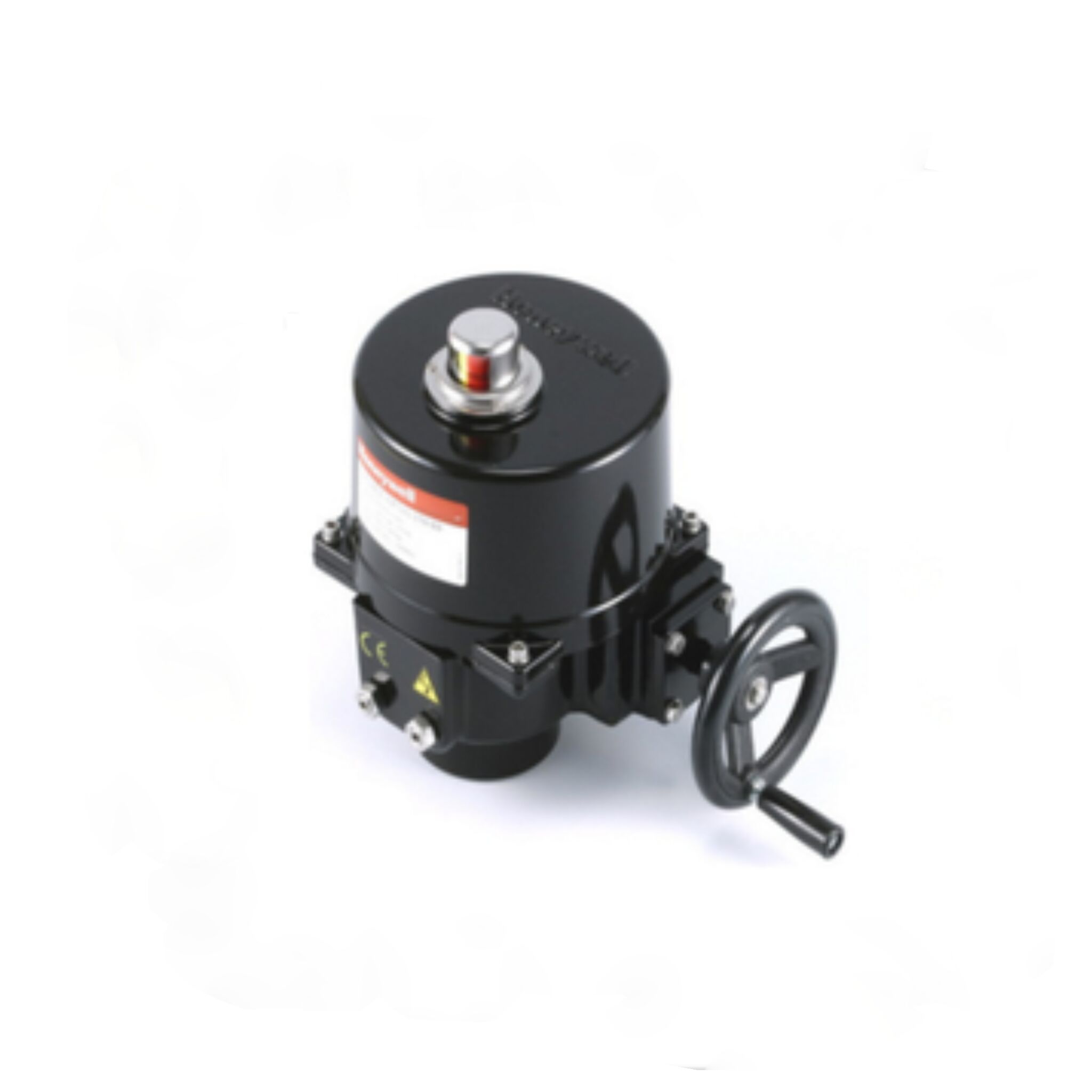

EM-0400 Honeywell Actuator

Available on order

55,301.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product  Description
Brand Honeywell
Model No. EM-0400
Power Supply 220Vac, 50/60 Hz
Travel Angle 90 Deg.C ± 5 Deg.C
Feedback 2 Aux Switches
Enclosure IP67 Waterproof
Ambient Temperature -30℃ to +65℃
Indicator Continuous Position Indicator
Worm Gear Permanently lubricated and self locking
Space Heater 15W 220V Anti-condensation
Material Aluminum Alloy
Stall Protection Built-in thermal protection

Cut off at 125 ± 5℃

Reset at 95 ± 5℃

Max Torque (nm) 400
Speed 0.57
Run time at 60 Hz 26
Power Consumption 60 W
Manual Override Hand-Wheel
Weight 18 Kg

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

The EM-0400 Honeywell Actuator , BSBFW Actuated Wafer Type Butterfly Valves are suitable for heating and cooling applications. The Honeywell EM-0400 Actuator, BSBFW series is equipped with standard On-Off control quarter-turn electric actuator. The BSBFW series can also provide feedback output signal: Dry contact for On-Off version

 FEATURES :-
• Wide size range (DN 50…DN500) for PN16 type
• For On-Off Control
• Manual override non-clutch design. Manual operation can be operated without any lever, clutch or brake upon power voltage.
• Irreversible worm gear.
• Visual mechanical position indicator for accurate visual reference of valve position.
• Anti-condensation heater and 2 aux. limit switches on standard model
• Enclosure IP67
