₹950.00 Excluding GST
Available in Stock
Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | Honeywell Envitec SpiroQuant H Flow Sensor |
| Measuring principle | Differential pressure principle |
| Sensor type | Disposable sensor for single patient use |
| Flow range | 0 to 100 slpm (standard liters per minute) |
| Accuracy | ± 15 % over measuring range |
| Application | Adult applications |
| Operating temperature | 0 °C … +50 °C |
| Operating humidity | 5 … 95 % RH non-condensing |
| Operating conditions | 570 … 1200 hPa only with external pressure compensation |
| Storage temperature | -20 °C … +70 °C |
| Storage ambient pressure | 570 … 1200 hPa |
| Storage humidity | 5 % … 95 % RH non-condensing |
| Storage time | Max. 5 years |
| Dead space | 11 cm³ (without cone adaption) |
| Operating Time | Single patient use, applicable as long as a sensor calibration is successful |
| Flow resistance | Approx. 1.0 mbar equals 60 slpm |
| Cross reference | Compatible to Hamilton flow sensor PN 279331 |
| Cleaning / disinfection | No re-use, cleaning or disinfection not allowed |
| Weight | Sensor without tubes: approx. 11 g;
Sensor incl. tubes: approx. 51 g |
| Material | Housing parts: MABS;
Inner part: PET; Tube: PVC – medical grade; Tube length: 1.8 m; Tube diameters: dI 0 3.0 mm -0.1 +0.05; dA = 4.6 mm |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

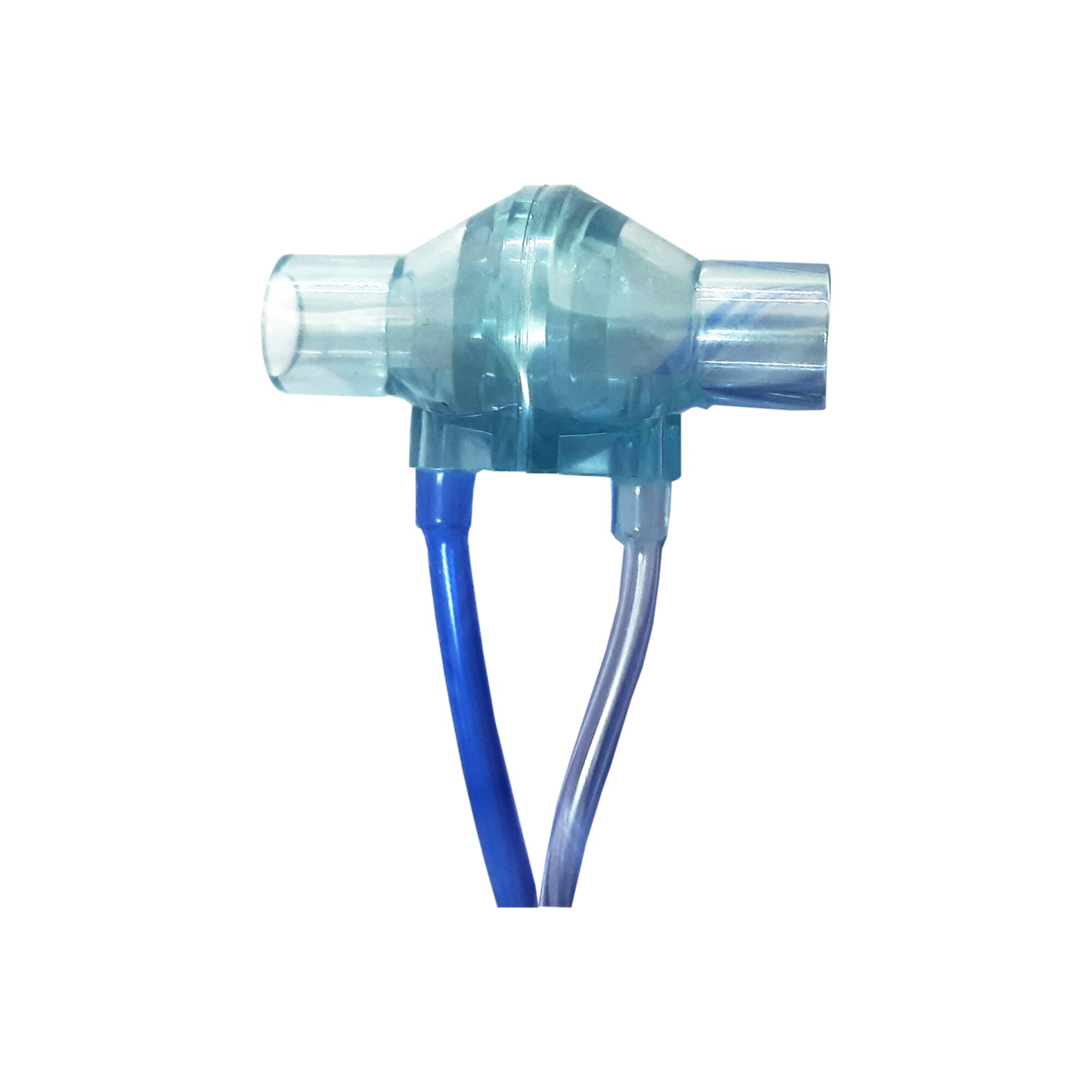

SpiroQuant H Flow Sensor
Features:
• Proven passive flow differential pressure converter
• Measuring of breathing gas flow in adult applications
• High product quality
• RoHS conform
• Biocompatible components
• Short delivery times
• Technical support
• Made in Germany
• Certified quality management system according EN ISO 13485
