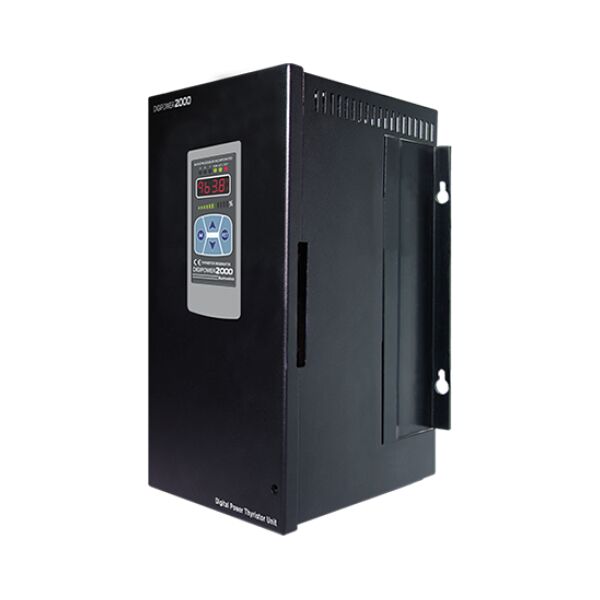

Name: DPU34B-070D Autonics Power Controller
SKU: 64844
Price: 96638.00 INR
Availability: OutOfStock

DPU34B-070D Autonics Power Controller

Available on order

₹96,638.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model Number	DPU34B-070D
Number of phase	3-phase
Output range	Phase control: 5 to 98%, Z.C. control: 0 to 100%
Control method	• Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback) • Cycle control (Z.C.): Fixed cycle control, Variable cycle control • ON/OFF control (Z.C.)
Load	• Phase control: resistance load, inductive load • ON/OFF, Cycle control: resistance load
Power consumption	Max. 10W (except FAN operation power)
Control input	• Auto: 4-20mA / 0-20mA / 0-5VDC âŽ“ / 1-5VDC âŽ“ / 0-10VDC @(=) / voltage pulse (0/12VDC @(=)) / no-voltage input (ON/OFF) / Communication input (RS485) • Manual: inside 10k? VR, outside 3 to 10k? VR (min. 2W)
Approval	CE
Size	70~200A
Rated current capacity	70A
Option	Remote Display Unit
Environment Ambient temperature	-10 to 50â„ƒ, storage: 20 to 80?
Environment Ambient humidity	5~90%RH
Weight	11.5kg

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Features:

High speed and high accuracy by digital control using high
speed CPU
Various controls
– Phase control, feedback control (constant voltage/constant
current/constant power)
-Zero crossing cycle control (fixed/variable cycles)
-Zero crossing ON/OFF control
Improved maintainability with built-in fast-acting fuse and easy
fuse replacement
Communication output model: RS485 (Modbus RTU)
Various control inputs and DI inputs
– control input: analog (current, voltage), ON/OFF (voltage
pulse, no voltage), communication (RS485), potentiometer
– DI input: AUTO/MAN switching, RUN/STOP switching,
Reset, output holding, SP designation (6 setting points can be
customized)
Various alarm output
– Overcurrent, overvoltage, fuse break, heat sink overheat,
device fault, heater break alarm (partial heater break
detection)
Improved convenience by separating operation part
Applicable load
– Supercantal, platinum, molybdenum, carbon, halogen lamps,
chrome, nickel, etc.
