₹4,982.00 Excluding GST
Product Details:
| Product | Description |
|---|---|

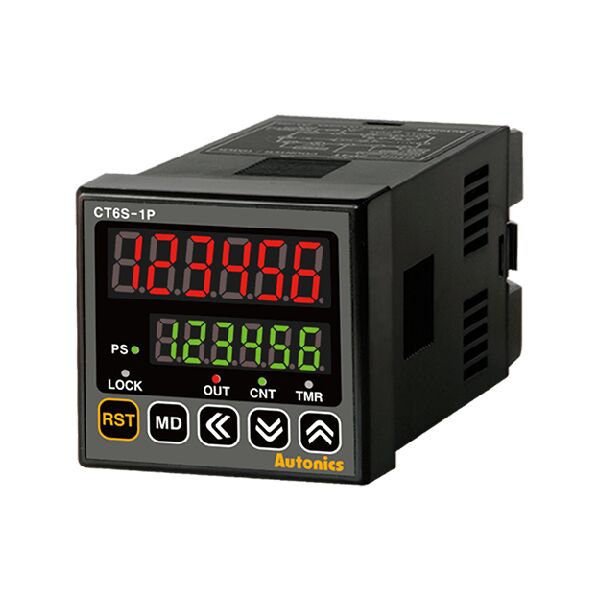

| Brand | Autonics |
| Model no | CT6S-1P2 |
| Display method | 6-digit 7-segment LED |
| Operation method | Counter: Count up, Count down, Count up/down Timer: Count up, Count down |
| Terminal | Terminal block |
| Output Operation | SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME |
| Power supply | 24VAC~ 50/60Hz, 24-48VDC |
| Time operation | POWER ON START SIGNAL ON START |
| External Power Supply | Max. 12VDC ±10%, 100mA |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Max. Counting Speed | 1, 30, 1k, 5k, 10k [cps] |
| Min. signal Width | 1ms/20ms |
| Memory Protection | Approx. 10 years |
| Setting range | 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour |
| Control output Type | 1-stage preset |
| Control output Relay | SPDT (1c): 1 |
| Control output NPN open collector | 1 |
| Protection structure | IP65(front panel) |
| Counter Counting range | -99999 to 999999 |
| Counter Scale | Decimal point up to fifth digit |
| Counter Min. input signal width | RESET: Selectable 1ms/20ms |
| Timer Min. input signal width | INA, INH, RESET: Selectable 1ms/20ms |
| Environment Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 212g (approx. 159g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
