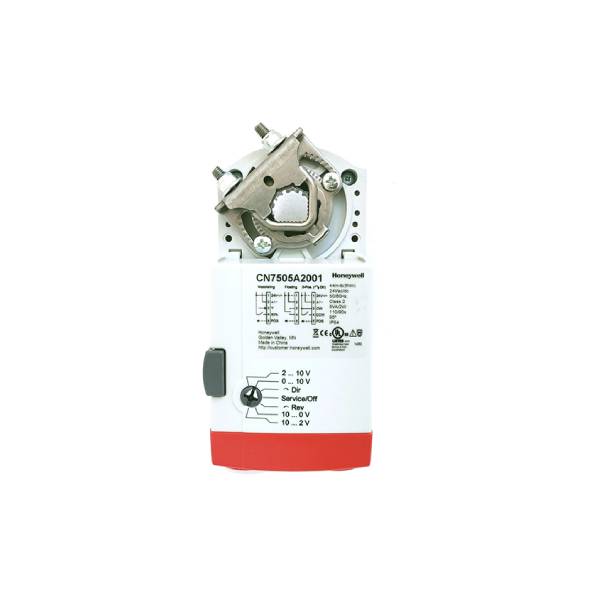

CN7505A2001 Honeywell Valve Actuator

CN7505A2001 Honeywell Damper Actuator

₹8,570.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model CN7505A2001
Power consumption 5 VA / 2 W
Supply voltage 24 Vac/dc -15%/+20%, 50/60 Hz
Nominal voltage 24 Vac/dc, 50/60 Hz
Control signal Modulating (0)2…10 Vdc

Floating/2-Position 24 Vac/dc
Ambient limits Ambient operating limits :-20…+60 °C(-5…+140 °F )

Ambient storage limits : -30…+80 °C(-22…+176 °F )

Relative humidity: 5…95%
Protection standard IP54
Lifetime Full strokes 60000

Repositions 1.5 million
Mounting Round damper shaft 3/8 in…5/8 in.

Square damper shaft 1/4 in…1/2 in.; 45° steps

Shaft length min. 1-5/8 in.
Torque rating 44 lb-in. (5Nm) / 88 lb-in. (10Nm)
Rotation stroke 95° + 3°
Weight (without cables) 1.0 lbs.
Certification CE & UL

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Categories: , Tags:

Description

CN7505A2001 Honeywell Damper  Actuator  , NON-SPRING RETURN DIRECT-COUPLED DAMPER ACTUATORS FOR MODULATING AND FLOATING CONTROL

This non-spring return direct-coupled damper actuator provides modulating and floating/2 position control for:
• air dampers,
• VAV units,
• air handlers,
• ventilation flaps,
• louvers, and
• reliable control for air damper applications with up to 10 sq.ft. / 44 lb-in. (5 Nm) and 20 sq.ft. / 88 lb-in. (10 Nm) (seal- less damper blades; air friction dependent).

Features:

10Nm, 24Vac/Vdc, Modulating control, Non-Spring return Voltage Feedback Signal and without aux. Switch
